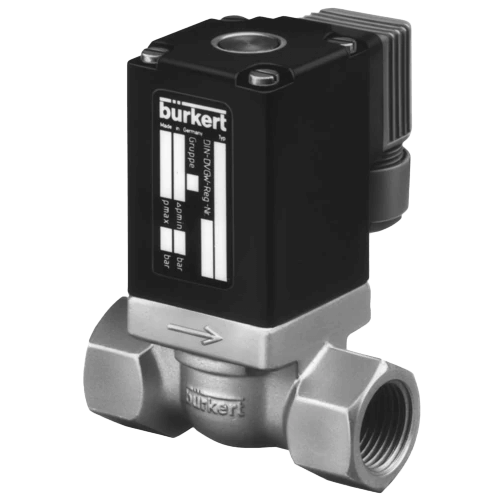

0285 2/2-Way Solenoid Valve
Brand: Burkert Fluid Control SystemsThe direct acting plunger solenoid valve Type 0285 is normally closed by spring force. During switching the core of the seal is tightened against the spring force, and opens the valve. The inlet has a gauze filter fitted.
The valve is delivered as standard with a bracket fitment. Type 0285 is best suited to flammable gases.
Features- Direct acting solenoid valve
- Switches without differential pressure
- Gauze filter on inlet
- Brass body
1 - 12 of 15 Part Numbers
020 807
- Orifice - 12 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 21 (L/min) / bar: 0 to 0.2
- Seal Material - NBR
- Voltage / Frequency - 230 V / UC
021 510
- Orifice - 12 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 21 (L/min) / bar: 0 to 0.2
- Seal Material - NBR
- Voltage / Frequency - 230 V / UC (Low Noise)
023 552
- Orifice - 12 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 33 (L/min) / bar: 0 to 0.2
- Seal Material - NBR
- Voltage / Frequency - 24 Vdc
041 910
- Orifice - 6 mm
- Port Connection - R 1/4”
- Air Flow Rate at Pmax / Pressure Range - 41 (L/min) / bar: 0 to 3.5
- Seal Material - NBR
- Voltage / Frequency - 230 V / 50 Hz
043 582
- Orifice - 12 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 33 (L/min) / bar: 0 to 0.5
- Seal Material - NBR
- Voltage / Frequency - 230 V / 50 Hz
043 757
- Orifice - 12 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 33 (L/min) / bar: 0 to 0.5
- Seal Material - NBR
- Voltage / Frequency - 230 V / 50 Hz (Without Fitting Bracket)
043 765
- Orifice - 6 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 41 (L/min) / bar: 0 to 3.5
- Seal Material - NBR
- Voltage / Frequency - 230 V / UC
047 750
- Orifice - 6 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 41 (L/min) / bar: 0 to 2.0
- Seal Material - FKM
- Voltage / Frequency - 230 V / UC
047 782
- Orifice - 6 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 41 (L/min) / bar: 0 to 3.5
- Seal Material - NBR
- Voltage / Frequency - 24 Vdc
055 012
- Orifice - 6 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 41 (L/min) / bar: 0 to 3.5
- Seal Material - FKM
- Voltage / Frequency - 230 V / 50 Hz
057 044
- Orifice - 6 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 41 (L/min) / bar: 0 to 3.5
- Seal Material - NBR
- Voltage / Frequency - 230 V / 50 Hz
057 691
- Orifice - 12 mm
- Port Connection - R 1/2”
- Air Flow Rate at Pmax / Pressure Range - 21 (L/min) / bar: 0 to 0.2
- Seal Material - FKM
- Voltage / Frequency - 230 V / UC (Low Noise)
1 - 12 of 15 Part Numbers
Specifications
Ambient Temperature Range
- -15° to 60° C (5° to 140° F)
Approvals & Certifications
- Test Regulations: DIN EN 161
Approvals & Certifications
- DVGW Group 2, Class A
BSP Connection
- 1/2” BSPT Female According to DIN 2999
- 1/4” BSPT Female According to DIN 2999
Consumption
- Power Consumption (AC): 10 W (Hold)
- Power Consumption (AC): 16 VA (Hold)
- Power Consumption (AC): 30-75 VA (Inrush)
- Power Consumption (DC): 12 W
Cycling Rate
- 1,000 cycles/minute
Duty Cycle
- 100 % Continuous Operation
Electrical Connectors
- Cable Plug for Cable Ø 7 mm
Electrical Contacts
- Normally Closed
Enclosure, Body Material
- Brass
Environmental Protection
- IP65 with Cable Plug
Flow Rate
- Air: 21 to 41 L/minute at Pmax
- Water: 0.7 to 1.8 Kv (m³/hour) Measured at 20° C (68° F), psi: 14.5 (kPa: 100, bar: 1) Pressure at Valve Inlet & Free Outlet
Materials of Construction
- Internal Parts of Valve: 316Ti Stainless Steel, 1.4542
- Internal Parts of Valve: 430FR Stainless Steel (1.4105)
Mounting
- Retaining Bracket
Mounting Position
- Preferably with Actuator Upright
Operating Voltages
- 220-230 V / 220-230 UC / 50 Hz
- 24 Vdc
Orifice Size
- 0.236” to 0.472” (6 to 12 mm)
Pressure Range
- AC - psi: 7.252 to 50.76 (kPa: 50 to 350, bar: 0.5 to 3.5)
- DC/UC - psi: 2.901 to 50.76 (kPa: 20 to 350, bar: 0.2 to 3.5)
Process Temperature
- NBR, FKM: -15° to 90° C (5° to 194° F)
Response Time
- Closing: 20 to 30 milliseconds (Pressure Decay 100 To10 %)
- Opening: 10 to 20 milliseconds (Pressure Build-Up 0 to 90 %)
Seat / Seal Material
- Seal: FKM (Media: Volatile Substances, Solvents, Hydrosulphide)
- Seal: NBR (Media: Flammable Mediums Like Energy Gas, Natural Gas, Liquid Gas, Acetylene, Hydrogen)
Solenoid Type
- 2/2-Way
Tolerance
- Voltage Tolerance: ± 10 %
