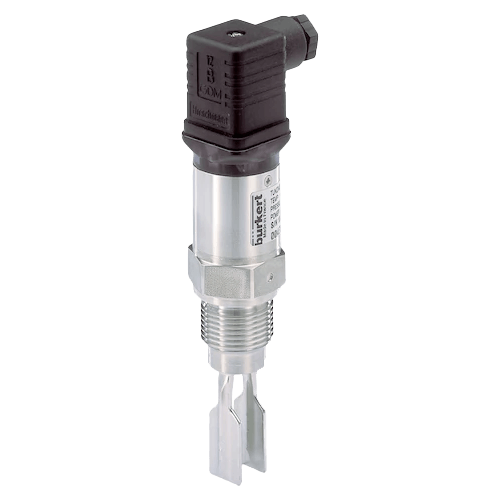

The 8110 is a vibrating level switch for liquids, using a tuning fork for level detection. It is designed for industrial use in areas of process technology and can be used in liquids.

Typical applications are overfill or dry run protection. The small tuning fork (40 mm of length) allows the use in vessels, tanks and pipes.

Due to the simple and rugged measuring system, the 8110 is virtually unaffected by the chemical and physical features of the liquid. It works even under unfavourable conditions such as turbulences, air bubbles, foam generation, buildup or varying products.
Features
  • For universal use as overfill or dry run protection system
  • Setup without adjustment
  • Smallest mounting dimensions

1 - 12 of 16 Part Numbers
438 680
438 680
  • Product - Accessories
  • Specifications - 5-Pin M12 Female Connector Moulded on Cable (2 metres, Shielded)
555 290
555 290
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - G 3/4”
  • Electrical Connection - Multipin M12 x 1
555 291
555 291
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - G 3/4”
  • Electrical Connection - Cable Plug EN 175301-803
555 292
555 292
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - G 1”
  • Electrical Connection - Multipin M12 x 1
555 293
555 293
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - G 1”
  • Electrical Connection - Cable Plug EN 175301-803
555 294
555 294
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - 2” Clamp
  • Electrical Connection - Multipin M12 x 1
555 296
555 296
  • Product - Vibrating Level Switch
  • Output - Contactless Electronic Switch (Not with PLC)
  • Power Supply - 20-253 Vac at 50/60 Hz or 20-253 Vdc
  • Process Connection - G 3/4”
  • Electrical Connection - Cable Plug EN 175301-803
555 298
555 298
  • Product - Vibrating Level Switch
  • Output - Contactless Electronic Switch (Not with PLC)
  • Power Supply - 20-253 Vac at 50/60 Hz or 20-253 Vdc
  • Process Connection - G 1”
  • Electrical Connection - Cable Plug EN 175301-803
557 154
557 154
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - 3/4” NPT
  • Electrical Connection - Multipin M12 x 1
557 155
557 155
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - 1” NPT
  • Electrical Connection - Multipin M12 x 1
560 986
560 986
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - 3/4” NPT
  • Electrical Connection - Cable Plug EN 175301-803
563 474
563 474
  • Product - Vibrating Level Switch
  • Output - Transistor PNP
  • Power Supply - 10-35 Vdc
  • Process Connection - G1/2”
  • Electrical Connection - Multipin M12 x 1
1 - 12 of 16 Part Numbers

Specifications

Ambient Temperature Range

  • Operating: -40° to 70° C (-40° to 158° F)
  • Storage: -40° to 80° C (-40° to 176° F)

Applications

  • Chemical Industry - Solvents, Reactors
  • Pipelines
  • Water/Sewage Water Plants

Approvals & Certifications

  • EMC EN 61326
  • Security: EN 61010-1

BSP Connection

  • G 1” Male
  • G 1/2” Male
  • G 3/4” Male

Consumption

  • PNP Transistor Output (Power): 0.5 W, Max.

Current

  • Domestic Current Requirement (Contactless Electronic Switch Output): Approximately 3 mA (Via the Load Circuit) (Not with PLC)
  • PNP Transistor Output (Blocking Current): < 10 µA

Delay Time

  • Approximately 500 milliseconds

Density Range

  • 0.7 to 2.5 g/cm² (0.025 to 0.09 lbs/in²)

Electrical Connectors

  • Cable Plug According to EN 175301-803
  • M12 x 1 Male Fixed Connector

Enclosure, Body Material

  • 316L Stainless Steel
  • Plastic PEI (Polyetherimide)

Environmental Protection

  • IP65
  • IP66
  • IP67

Frequency

  • Approximately 1,200 Hz

Hysteresis

  • Approximately 2 mm (0.08”) with Vertical Installation

Indication

  • PNP Transistor Output: LED Indication (Green & Red)

Load

  • Contactless Electronic Switch Output (Load Current): 10-250 mA
  • PNP Transistor Output (Load Current): 250 mA - Max.

Materials of Construction

  • Tuning Fork & Fitting: 316L Stainless Steel 1.4435

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 3/4” NPT Male

Pipe Connection

  • DN 25 Pipe - DIN 11851
  • DN 38 Pipe - SMS 1145
  • DN 40 Pipe - DIN 11851
  • DN 50 Pipe - DIN 11851

Power Supply

  • Contactless Electronic Switch Output: 20-253 Vac at 50/60 Hz
  • Contactless Electronic Switch Output: 20-253 Vdc
  • PNP Transistor Output: 10-35 Vdc

Pressure Range

  • psi: -14.5 to 928 (kPa: -100 to 6,400, bar: -1 to 64)

Process Temperature

  • -40° to 100° C (-40° to 212° F) [150° C (302° F) for Clamp Process Connection]

Seat / Seal Material

  • Process Seal: Klingersil C 4400

Switch Type

  • Transistor - PNP

Tri-Clamp Connection

  • 1” Tri-Clamp
  • 1-1/2” Tri-Clamp
  • 2” Tri-Clamp

Viscosity

  • Dynamic Viscosity: 0.1 to 10,000 MPa-s

Voltage

  • PNP Transistor Output (Turn-On Voltage): 34 Vdc, Max.

Voltage Drop

  • PNP Transistor Output: 3 Vdc, Max.
