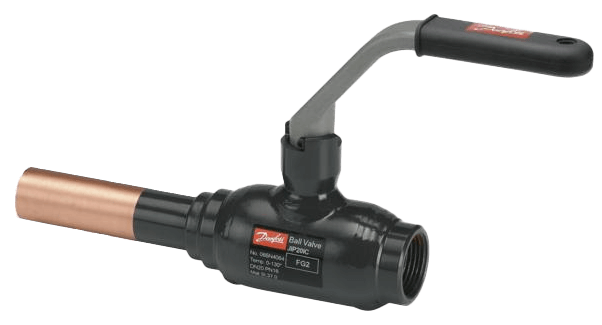

JIP-IC Threaded Copper Connection Ball Valve

Brand: Danfoss

Danfoss Standard JIP™ ball valves is a range of reduced bore shut off valves developed for District Heating and District Cooling networks, with circulating medium. It is a range of steel ball valves with fully welded body.

The valve design makes them ideal for building installation due to:
  • Energy saving: with optimum flow design valves have highest Kv on the market and consequently lowest pump energy costs
  • Long lifetime and optimal tightness due to design and material selection in ball seal and stem seal (carbon reinforced PTFE)
  • The valves are maintainance free, besides the shut off valves in the core distribution network Danfoss offers a range of supplementary valves, e.g. hot tap valves, branching valves, twin valves and draining valves

1 - 5 of 5 Part Numbers
065N4057
065N4057
  • Connection - DN 15, PN 16
065N4064
065N4064
  • Connection - DN 20, PN 16
065N4071
065N4071
  • Connection - DN 20, PN 16 with T-Handle
065N4087
065N4087
  • Connection - DN 25, PN 16
065N4195
065N4195
  • Connection - DN 15, PN 16 with T-Handle
1 - 5 of 5 Part Numbers

Specifications

Brand

Approvals & Certifications

  • PED 97/23/EEC Module H1

Approvals & Certifications

  • EN 12266 Part 1 P10-P11-P12 & Part 2 F20
  • OHSAS 18001

Ball Material

  • Stainless Steel

Enclosure / Body Material

  • Welded Body: Steel Ball Valves

Flange Material

  • Steel P245 GH

Flow Rate

  • 6.47 to 20.00 scfm (11 to 34 m³/hour)

Handle Assembly Material

  • Steel

Materials of Construction

  • Pipe Insert, Stopsector: Stainless Steel
  • Washer: Carbon Reinforced PTFE
  • Welding End & Shell: Steel P235 GH, Guided Pipe: Steel P235

Media

  • Circulation Water
  • Glycolic Water up to 50 %

Nut & Bolt Material

  • Compression Nut: Steel

Packing Material

  • Steel P235 GH, Steel P245 GH

Pressure Range

  • psi: 0 to 580 (kPa: 0 to 4,000, bar: 0 to 40)

Ring Material

  • Compression Ring: Steel
  • Retaining & Support Ring: Stainless Steel
  • Stem Sealing Ring: Carbon Reinforced PTFE

Seal Retainer

  • Ball: Steel P235

Seat / Seal Material

  • Steam Sealings: Carbon Reinforced PTFE

Spring Material

  • Pin: Steel
  • Spring Disc: Domex 650 MC

Stem Material

  • Stainless Steel

Storage Temperature

  • -40° C (-40° F) Min.

Temperature Range

  • 0° to 180° C (32° to 356° F)

Valve Type

  • Manual

Welded Connection

  • DN 15 Weld End
  • DN 20 Weld End
  • DN 25 Weld End
