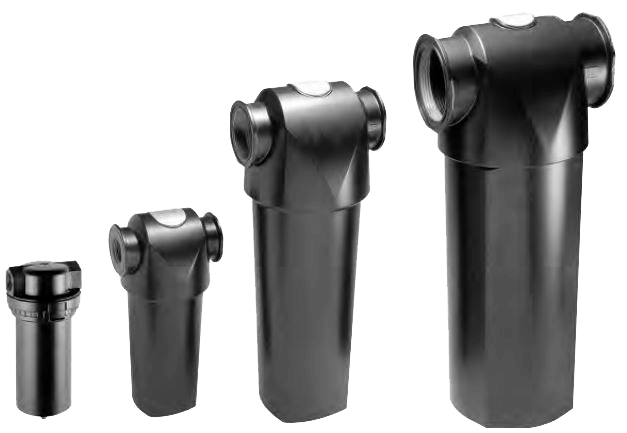

WSA/WSO Liquid Separator

Brand: Wilkerson Corporation
Add Product to My Catalog

Our unique design combines the techniques of centrifugal action and other mechanical separation principles (Impingement, Separation, Laminar Flow and Stokes Law) to remove large quantities of liquid and solid contamination.
Features
  • High Flow Rates
  • Less than 1 PSIG Differential Pressure
  • Lightweight Cast Aluminum Housing with 1" to 3" NPT Connections (WS0)
  • Cast Zinc Housings with 1/4" to 1" NPT Connections (WSA)
  • External Surfaces Epoxy Painted for Maximum Corrosion Protection
  • Standard Equipped with Quick Disconnect Bowls for Ease of Service (WSA)
  • Three (3) Optional Automatic Drains Available

1 - 12 of 14 Part Numbers
WS0-08-000B
WS0-08-000B
WILKERSON 1" in / Out NPT Pipe Connection, Rated Flow 233 SCFM @ 100 psig
WS0-0B-000B
WS0-0B-000B
WILKERSON 1-1/2" in / Out NPT Pipe Connection, Rated Flow 742 SCFM @ 100 psig
WS0-0C-000B
WS0-0C-000B
WILKERSON 2" in / Out NPT Pipe Connection, Rated Flow 742 SCFM @ 100 psig
WS0-0E-000B
WS0-0E-000B
WILKERSON 3" in / Out NPT Pipe Connection, Rated Flow 1,700 SCFM @ 100 psig
WSA-02-FM0
WSA-02-FM0
WILKERSON 1/4" in / Out NPT Pipe Connection, Rated Flow 25 SCFM @ 100 psig
*1 PSID maximum differential.
WSA-02-M00
WSA-02-M00
WILKERSON 1/4" in / Out NPT Pipe Connection, Rated Flow 25 SCFM @ 100 psig, Models Have Petcock.
*1 PSID maximum differential.
WSA-03-FM0
WSA-03-FM0
WILKERSON 3/8" in / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig
WSA-03-M00
WSA-03-M00
WILKERSON 3/8" in / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig, Models Have Petcock
*1 PSID maximum differential.
WSA-04-FM0
WSA-04-FM0
WILKERSON 1/2" in / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig
WSA-04-M00
WSA-04-M00
WILKERSON 1/2" in / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig, Models Have Petcock
WSA-06-FM0
WSA-06-FM0
WILKERSON 3/4" in / Out NPT Pipe Connection, Rated Flow 100 SCFM @ 100 psig
WSA-06-M00
WSA-06-M00
WILKERSON 3/4" in / Out NPT Pipe Connection, Rated Flow 100 SCFM @ 100 psig, Models Have Petcock
1 - 12 of 14 Part Numbers

Specifications

Brand

Maximum Operating Pressure

  • WSA: 200 psig (13.8 bar)
  • WSO: 232 psig (16.0 bar)

Operating Temperature

  • WSA: 32° to 150° F (0° to 65.5° C)
  • WSO: 35° to 176° F (1.6° to 80° C)

Pressure Differential at Rated Flow

  • 1.0 psid (0.07 bar)

Typical applications include water separation downstream of aftercoolers, protection of refrigerant and heatless regenerative desiccant dryers, downstream of air receivers, and other liquid / gas separation duties where the volume of water and solids poses a real problem.
