MTS Sensors Magnetostrictive Linear Position Sensor, EP2 Start/Stop

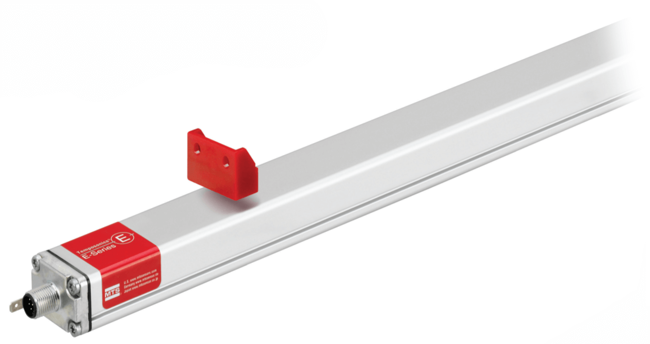

EP2 Start/Stop Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Add Product to My Catalog

Robust, non-contact and wear free, the Temposonics linear position sensor provide high durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors. The compact and smooth aluminum profile offers flexible mounting options and easy installation.

Moreover, the position magnet can travel along the entire flat housing profile. The EP2 has an attractive price- / performance ratio and is ideal for industrial applications including plastics molding and processing, factory automation and packaging.
Features
  • Optimal price-performance ratio
  • Position measurement with more than one magnet
  • Smooth & compact

Specifications

Brand

Approvals & Certifications

  • ISO 9001 (DQS)

Approvals & Certifications

  • CE
  • EMC Electromagnetic Emission EN 61000-6-3, Immunity EN 61000-6-2
  • UL 61010-1

Communication

  • Start/Stop: RS-422 Differential Signal

Consumption

  • Current Consumption: 50 to 100 mA

Electrical Connectors

  • M12 (8-Pin) Male Connector

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Environmental Protection

  • Ingress Protection: IP67 (If Mating Cable Connector is Correctly Fitted)

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke Length: 2 to 118” (50 to 3,000 mm)

Linearity

  • ≤ ± 0.02 % of Full Scale (Min. ± 90 µm)

Materials of Construction

  • Sensor Lid: Die Cast Zinc
  • Sensor Profile: Aluminum

Mounting

  • Clamp Mount

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • ≤ ± 0.005 % of Full Scale (Min. ± 20 µm)

Shock

  • 100 G (Single Shock) IEC 60068-2-27

Vibration

  • 8 G (10 to 2,000 Hz) IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)

  • Factory Automation
  • Packaging Machines
  • Plastics Molding & Processing

Documentation

Data Sheets
