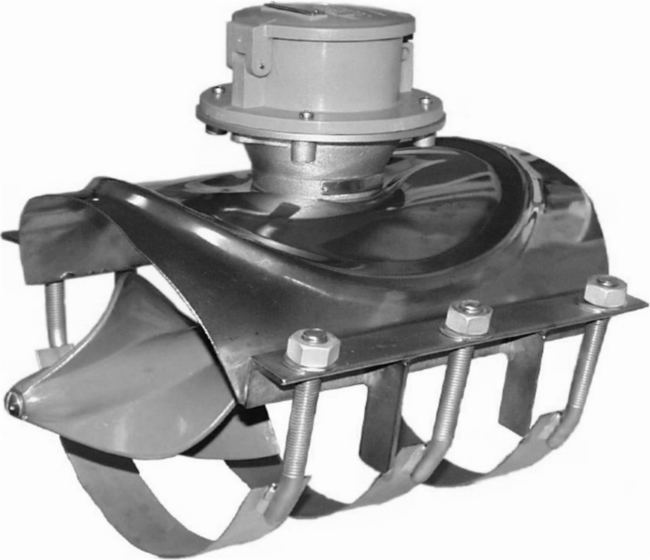

Model LP32-D Strap-On Saddle Meter
Brand: McCrometer, IncMcCrometer Model LP32-D Strap-On Saddle Meter are designed for irrigation or other low pressure service up to 150 psi working pressure.
The stainless steel saddle and u-straps permit installation on a wide range of steel, cast iron, plastic (3/16" PVC wall minimum), asbestos, and other pipe materials for each nominal meter size. It is necessary upon ordering to furnish the I.D. dimension of the pipe the meter is to be mounted on, for calibration purposes.
The pipe O.D. dimension or wall thickness must also be furnished for proper sizing of the U-straps.
Specifications
Brand
Bearing Material
- Propeller Bearing: Ceramic Sleeve
Environmental Protection
- IP66
- NEMA 4X
Materials of Construction
- Magnet: Permanent Ceramic Typical, Propeller Spindle: Ceramic Sleeve
- Propeller: Injection Molded Thermoplastic
- Saddle, Lug Strips, U-Straps, Bolt, Separator, Gearbox, Propeller Spindle: Stainless Steel
Maximum System Pressure
- psi: 150 (kPa: 1,000, bar: 10)
Size
- Meter & Pipe Size: 6” to 20”
