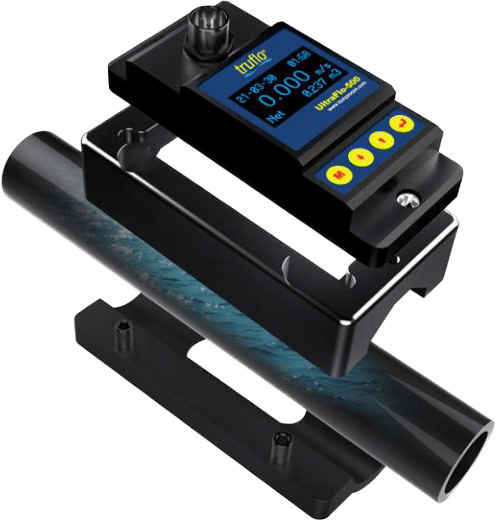

UltraFlo 500 Clamp-On Ultrasonic Flow Meter
Brand: Truflo®The Truflo UF500 Series Clamp-on Ultrasonic flow meters require no pipe cutting, eliminating flow restrictions, and are extremely easy to install with exceptionally long-life performance.
These flow meters are highly repeatable, rugged sensors that offer exceptional value with virtually no maintenance.
The UF500 has a wide dynamic flow range of 0.1 to 5 m/s (0.3 to 15 ft/s).
The flow meter ultrasonic transducer sends over 50 pulses/sec in order to provide accurate measurement of liquid flow rates in full pipes and can be used in low-pressure systems.
They are available in ABS or Aluminum bodies providing the combination of being lightweight and having excellent external corrosion resistance.
The UF500 Ultrasonic flow meter can be installed in under two (2) minutes and requires no alteration to current piping configurations.
Features- Simple to Install-No Cutting of Pipe
- Large Blue OLED Low Light Display
- High Accuracy: ± 2.0% of Full Scale
- Pipe Sizes: 1/2" to 4″
- Flow Rate + Total | Resettable
- Flow Velocity Range: 0.3 – 15 ft/s | 0.1 – 5 m/s
- Works on PVC, PP, PVDF, PE, SS, Copper Pipe
Specifications
Brand
Operating Range
- 0.3 to 15 ft/s
Pipe Size Range
- 1/2” to 2”
Linearity
- ± 2.0 % of Max. range @ 25° C
Repeatability
- ± 0.8 % of Max. range @ 25° C
Sensor Body Materials
- ABS
- Aluminum
Power Supply
- 24 Vdc
Standards and Approvals
- CE
- FCC
- RoHS
- Chemical Processes
- Water Usage
- Scrubber & Gas Stacks
- Sodium Hypochlorite
- Visual Flow Indication
- Totalizer: Batching Applications
