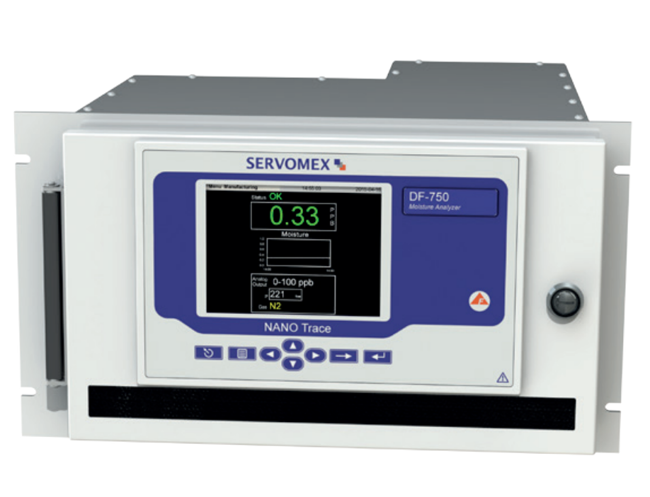

DF-750 NanoTrace Tunable Diode Laser Trace/Ultra-Trace Moisture Analyzer

Brand: SERVOMEX

Designed specifically to make trace and ultra-trace measurements in a range of ultra high purity gases, the DF-750 is the leading choice in moisture analysis for the semiconductor industry.

Optimized for use in 300 mm semiconductor fabs, the DF-750 measures moisture as a contaminant in electronics grade nitrogen, hydrogen, helium, argon and oxygen.

With Servomex’s industry-leading TDL sensing technology delivering an industry-leading 100 ppt Lower Detection Limit, the DF 750 delivers a stable, highly accurate measurement that meets the precise monitoring needs of semiconductor production.

This analyzer also offers attractive affordability over product life. The DF-750’s robust sensor construction has low lifetime maintenance requirements and delivers zero-drift stability that greatly extends calibration intervals. This low cost of ownership combined with exceptional measurement performance, the DF-750 is the first-choice analytical solution for UHP gas quality checks.

Specifications

Brand

Accuracy

  • ± 3 % of Reading / ± 0.2 ppb, whichever is greater

Approvals & Certifications

  • EU EMC Directive
  • EU Low Voltage Directive (LVD)
  • IEC 61010-1

Environmental Protection

  • IP10
  • NEMA 1

Operating Temperature

  • 10° to 40° C (50° to 104° F)

Pressure Range

  • Sample Pressure - psig: 30 to 150 (bar: 2.07 to 10.34, kPa: 207 to 1,034) (3.08 to 11.3 barA)

Process Connection - Other

  • 1/4” Compression Fitting

Range

  • 0 to 20 ppm to 0 to 2 ppb Min
