Rosemount Pipe Clamp Temperature Sensor, 0085

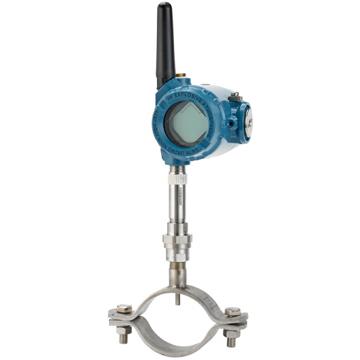

Rosemount 0085 Pipe Clamp Temperature Sensor

Brand: Rosemount
Add Product to My Catalog

For easy installation anywhere, the Rosemount™ 85 Pipe Clamp Temperature Sensor offers a selection of clamp sizes and materials to provide an adaptable surface temperature measurement solution over a wide range of temperatures.

This platinum, resistance temperature detector (RTD) sensor comes with a silver or nickel tip for improved response time and is an ideal solution for applications with high velocities, heavy liquids or particulates. The spring-loaded sensor ensures optimal surface contact for improved performance.

Rosemount X-well Technology provides a Complete Point Solution™ for accurately measuring process temperature without the requirement of a thermowell or process penetration.
  • Simplify temperature measurement point specification, installation and maintenance, and eliminate possible leak points
  • Calculates a repeatable and accurate process temperature measurement via an in-transmitter thermal conductivity algorithm
  • Measures pipe surface and ambient temperature, and utilizes the thermal conductivity properties of the installation and process piping in order to provide an accurate process measurement
Proven pipe clamp sensors deliver excellent performance and reliability
  • Superior accuracy and stability
  • Improved response time with silver and nickel tip
Easy implementation and installation in existing application
  • Available in a wide variety of pipe sizes and materials
  • Installation with only two bolts – no welding needed
  • Optimized surface contact by spring loaded sensor design
Minimized risk of sensor failure and unplanned shutdowns
  • Avoids stresses related to flow, pressure, chemical contact, abrasion, vibration, and bending
  • Maintenance of sensor without shutdown of process
Achieve optimal efficiency with Rosemount wireless transmitter offering
  • Measure your temperature anywhere
Explore the benefits of Complete Point Solutions from Rosemount Temperature Measurement
  • An “Assemble to Transmitter” option enables Emerson to provide a complete point temperature solution, delivering an installation-ready transmitter and sensor assembly
  • Emerson has a complete portfolio of single point, high density, and wireless temperature measurement solutions, allowing you to effectively measure and control your processes with the reliability you trust from Rosemount products
Ordering Information
The Rosemount 0085 Pipe Clamp Sensor is designed for fast and easy non-intrusive surface temperature measurements in piping applications.
Features
  • Sensor covers wide range of temperatures -328 to 572 °F (-200 ° to 300 °C) to meet application demands
  • Direct mounts to Rosemount 648 Wireless with Rosemount X-well™ Technology for accurate process temperature measurement
  • Wide variety of clamp sizes and materials allows for installation anywhere and provides application flexibility
  • Installation requires only two bolts (no welding required) for a straightforward connection
  • Platinum RTD temperature sensors designed with silver or nickel tip for improved response time
  • Withstands applications with high velocities, heavy liquids or particulates for durability and stability
  • Non-intrusive design eliminates need for process penetration of fluids with toxic properties for added safety
  • Spring-loaded sensor ensures best surface contact for enhanced performance
  • Temperature range of –58 to 572 °F (–50 to 300 °C) for silver tip, –328 to 572 °F (–200 to 300 °C) for nickel tip
  • Suitable for pipe sizes ½- to 48-in. (22 to 1,219 mm)
  • Single or Dual Element Class A Sensor
  • Assemble-to-transmitter Option

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CSA
  • EAC
  • FM
  • IECEx

Enclosure, Body Material

  • 304 Stainless Steel
  • Carbon Steel (1.0037)
  • Duplex F51 (1.4462)

Lead Insulation

  • PTFE

Materials of Construction

  • Silver-Coated Copper Wire

Resistance

  • Insulation Resistance: 1,000 MΩ Min. Insulation Resistance when Measured at 500 Vdc at Room Temperature

Temperature Range

  • -200° to 300° C (-328° to 572° F)

Documentation

Data Sheet

Drawings & Schematics

Quick Start Guide
