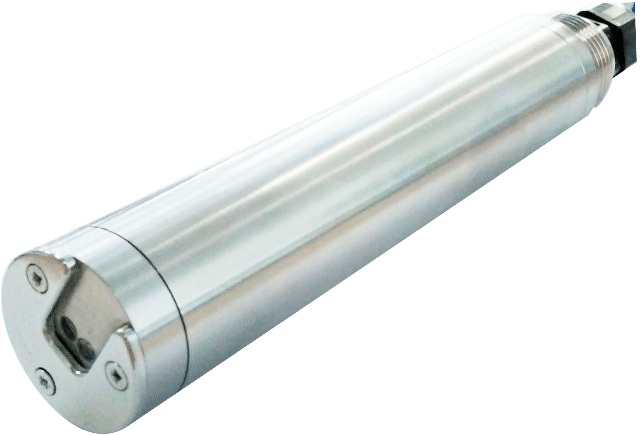

Total Suspended Solids (TSS) Monitor / Sensor

Brand: Chemtrac

Whatever level of suspended solids from 2 NTU all the way up to >8% solids, the Chemtrac TSS Monitor is the solution.

A sophisticated sensor that ranges up to 8% solids (in wastewater, and up to 50% in other solids), this suspended solids monitor is the solution, and is unique in its ability to measure from low NTU to percent solids in one sensor.

Suitable for wastewater, potable water monitoring, mixed liquor suspended solids monitoring, return activated sludge, centrate monitoring, filtrate monitoring, sludge, and many more applications where a traditional turbidimeter or suspended solids analyzer would be used.

The suspended solids sensor can be fitted with an auto-cleaning function that blasts either water or air across the optical windows keeping them clean.

With the Chemtrac Suspended Solids monitors you get a world class sensor (patent applied for).
Features
  • Autoclean optical sensor - minimal operator intervention
  • Stable and reliable - excellent process control
  • Suitable for all potable, waste and process waters
  • Maintenance free’ with up to 1 year between calibration
  • From 2 NTU (1 mg/l) to 8% Solids
  • Up to 145 psi
  • Extremely low total cost of ownership

Specifications

Brand

Range

  • Up to 80 g/l (8 % Solids)

Accuracy

  • < 2 % of Measured Value or 0.01 g/L (Whichever is Greater)

Reproductivity

  • < 1 % of Measuring Value or 0.001 g/L whichever is greater

Limit of Detection

  • 0.001 g/L

Resolution

  • Up to 0.0001 g/l

Response Time

  • T90 > 10 seconds

Process Temperature

  • 32° to 122° F (0° to 50° C)

Operating Pressure

  • 145 psi (10 bar) Max.

Environmental Protection

  • IP68

Power Consumption

  • Maximum 70 mA at 12 Vdc

Cable Length

  • 20 ft (6 m)

Wetted Material

  • 316 Stainless Steel, Sapphire

  • Wastewater Applications

Documentation
