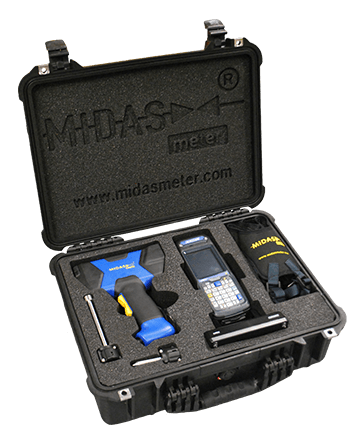

MIDAS Meter® & PDA
Brand: Midas Valve DiagnosticsIt is known that leaking valves represent a major safety risk and are a major source of lost profits.
Find leaking valves quickly and easily with Score's MIDAS Meter® Acoustic Emission Leak Detector long before detection by conventional methods or instrumentation!
Completely portable and easy to use, the MIDAS Meter® uses an acoustic emission (AE) sensor which finds and quantifies valve leakages by examining the very high frequency noise a leaking fluid generates.
Not only does this valve leak detection tool quickly find leaking isolation valves, control valves, check valves, PSVs and steam taps, it also allows personnel to benchmark valve performance during commissioning and provides data storage, analysis and reporting in the field via a PDA.
This state of the art valve condition and performance solution takes you from reactive to proactive maintenance by engaging in condition based monitoring and predictive maintenance activities.
MIDAS Meter® valve leak detection equipment therefore helps focus budget expenditure and actions on valves where maximum benefits can be delivered.
Features- Reduced Operating Costs
- Maximized Profitability
- Minimized Losses
- Optimized Process Efficiency
- Optimized Reliability and Uptime
- Minimized Safety and Environmental Risks
Specifications
Brand
Specifications
- The MIDAS Meter® and PDA are safe for use in hazardous oil & gas environments
- Completely portable and easy to use
- Non-intrusive
- Integral display for use stand alone
- Battery Powered (Rechargeable)
- Bluetooth communications from sensor to PDA
- PDA for data logging and quantification analysis of leak detection survey
- Data download and export capabilities
- MIDAS Meter® Ambient temperature range: -20° C to +50° C
- Sensor face high temperature limit +125° C, above this wave guides are used
- Detects leaks as low as 0.1 litre per minute
Operating Conditions
- Service Fluid will be dependent on valve service. Options here are Gas, Liquid and Steam
- The respective fluid density will change dependant on selection
- Defaults are as follows: Gas 1.20410 kg/m³ (Air at 20° C at Sea Level),
- Ambient Temperature conditions should always be detailed as appropriate, standard 20° C. (
- Line Pressure will be dependent on the valve operating conditions, ideally a differential pressure of 5 barg is required with one side to atmospheric conditions. The up and downstream pressures are set using the -/+ buttons
MIDAS Meter® can be deployed in support of:
- Asset Integrity Management (AIM) requirements, with its ability to trend leakage over time and so enable a predictive maintenance strategy, based on Reliability Centred Maintenance (RCM) principles to be implemented for the valve population
- Risk Based Inspection (RBI) programmes for example, in support of ESDV Management and Verification programmes, or in conjunction with setting PSV recertification intervals and benchmarking valve performance during plant commissioning or start-ups
- Pre-shutdown planning activities to maximise return on investment from prioritised maintenance
- Trouble shooting to identify problem valves so potentially avoiding unexpected/unplanned shutdowns
