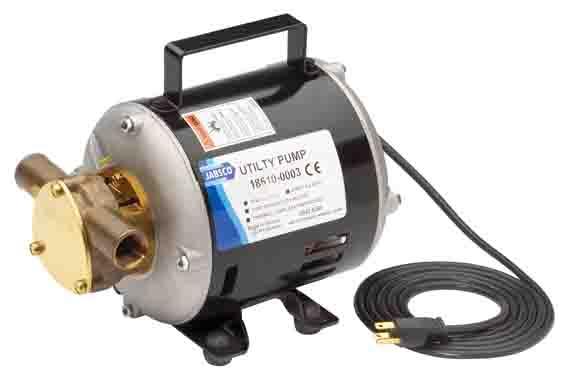

18610 Series Bronze Utility AC Motor Pump Unit

Brand: Jabsco

Features
  • Easy to service and maintain
  • Will tolerate abrasive wear (this may affect performance - seek advice from your distributer)
  • Handles hard and soft solids without clogging
  • Non pulsating flow

1 - 6 of 6 Part Numbers
18610-0001
18610-0001
Jabsco Bronze Utility AC Motor Pump Unit, 18610 Series
  • Impeller: Neoprene
  • Motor Type: ODP Motor; 1/4 hp, Non-Vented, Thermal Overload Protection
18610-0003
18610-0003
Jabsco Bronze Utility AC Motor Pump Unit, 18610 Series
  • Impeller: Nitrile
  • Motor Type: ODP Motor; 1/4 hp, Non-Vented, Thermal Overload Protection
18610-0004
18610-0004
Jabsco Bronze Utility AC Motor Pump Unit, 18610 Series
  • Impeller: Viton
  • Motor Type: ODP Motor; 1/4 hp, Non-Vented, Thermal Overload Protection
18610-0271
18610-0271
Jabsco Bronze Utility AC Motor Pump Unit, 18610 Series
  • Impeller: Neoprene
  • Motor Type: TEFC Motor; 1/4 hp, Non-Vented, Thermal Overload Protection
18610-0273
18610-0273
Jabsco Bronze Utility AC Motor Pump Unit, 18610 Series
  • Impeller: Nitrile
  • Motor Type: TEFC Motor; 1/4 hp, Non-Vented, Thermal Overload Protection
18610-0274
18610-0274
Jabsco Bronze Utility AC Motor Pump Unit, 18610 Series
  • Impeller: Viton
  • Motor Type: TEFC Motor; 1/4 hp, Non-Vented, Thermal Overload Protection
1 - 6 of 6 Part Numbers

Specifications

Brand

Bearings

  • Uses Motor Bearings

Body Material

  • Bronze

Cable

  • 8 feet (2.4 m)

Frequency

  • 60 Hz

Impeller

  • Neoprene, Nitrile or Viton

Motor

  • 1/4 HP, ODP Non-vented with Thermal Overload or TEFC

Plug Fitted

  • 3 Prong Grounded

Port Type

  • 1/2” (12.7 mm) Female NPT, 3/4” (19 mm) Male Garden Hose Adapter

Seal

  • Neoprene Lip-Typical

Shaft Material

  • 316 Stainless Steel

Voltage

  • 115 Vac

Weight

  • 5.5 kg (12 lbs)

Flow Rate

  • Nominal 6 US gallons/min (22.8 Litres/min)

Self-Priming

  • From Dry Up to 6 ft (1.8 m)

Pressure

  • Up to 1.1 bar
