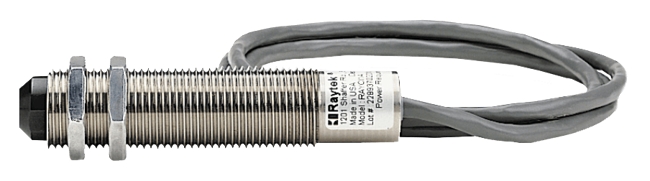

CI Infrared Temperature Sensor
Brand: RaytekThe Raytek CI model provides the advantages of infrared temperature measurement in a compact, low cost, integrated sensor.
Designed for easy integration into a standard 4-wire system, the CI sensor can easily replace traditional contact probes with a J-type or K-type thermocouple output, or with a 0-5 volt output if your application is susceptible to noise or requires a longer cable run.
Features- Type J or K, or 0-5 V output
- Two models cover temperature ranges from 0° to 500° C (32° to 932° F)
- IP 65 (NEMA-4) stainless steel electronics housing
- 4:1 optics at 90% energy
- 350 MilliSecond (95%) response time
- Powered by 12–24 Vdc at 20 mA
- Accessories for cooling and air purging
Specifications
Brand
Accuracy
- ± 3° C (± 5.4° F)
- ± 6 %
- ≥ ± 5 %
- 0.2%
Ambient Temperature Range
- 0° to 70° C (32° to 158° F)
- 0° to 260° C (32° to 500° F) - with Water Cooling
- 0° to 90° C (32° to 200° F) - with Air Cooling
Approvals & Certifications
- IEC 68-2-27
Cable Length
- 3.3 feet (1 metre)
Environmental Protection
- IP65 (NEMA -4)
Frequency
- 11 to 200 Hz
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Load Impedance
- 50 kiloohms
Output Format
- Voltage
Output Load
- 50 ohms
Power Requirement
- 12-24 Vdc at 20 mA
Repeatability
- ± 1 %
Resolution
- < 0.5° C or (1° F)
Response Time
- 350 milliseconds
Sensor, Probe Type
- J Thermocouple
- K Thermocouple
Shock
- 50 G
Storage Temperature
- -30° to 85° C (-22° to 185° F)
Temperature Range
- 30° to 500° C (86° to 932° F)
Vibration
- MIL-STD-810D, 3 G
