CAB-699 Fiber Optic Temperature Probe

Brand: Qualitrol Company

Robust, oil-permeable Neoptix T2™ temperature probes for highly accurate measurement of power transformer temperatures.

Installed within standard spacer or directly onto any other location inside transformer windings to directly measure ‘hot spot’ temperature.
Features
  • Direct measurement inside transformer yields highly temperature readings reducing risk of failure or unnecessary reduction in transformer life
  • Over 35,000 installed worldwide
  • All materials are chemically and dielectrically resistant
  • ST type connectors resist failure due to vibration
  • Galium arsenide (GaAs) measurement principle

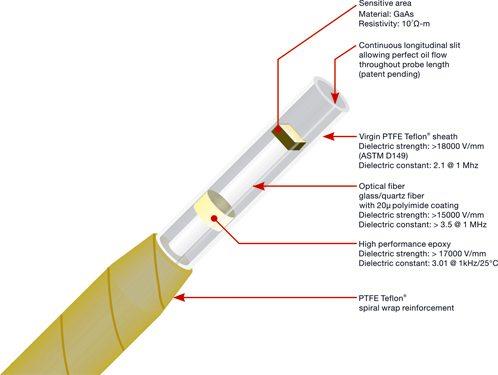

  • Unique, patent-pending longitudinal slit enables uniform contact with transformer oil over entire probe length

Specifications

Accuracy

  • ± 1° C (± 1.8° F)

Approvals & Certifications

  • ASTM -D 149 & ASTM -D 2413

Chemical Resistance

  • Solvent & Chemical Resistant (Kerosene, etc.)

Connector Type

  • Standard Fiber Optic ST

Measurement Range

  • -40° to 200° C (-40° to 392° F)

Response Time

  • 500 milliseconds

Sensor, Probe Material

  • Chemically Resistant, Inert & Dielectric Materials
  • Quartz Optical Fiber

Sensor, Probe Permeability

  • Longitudinal Continuous Slit (Patent Pending) on Cable Insures Uniform Oil Impregnation Into Sheath

Sensor, Probe Sensitive Area

  • Direct Point Measurement with Sensitive Area of 400 microns O.D.

Standard Sensor, Probe Length

  • 4 to 10 metres

Survivability Range

  • -200° to 300° C (-328° to 572° F)
