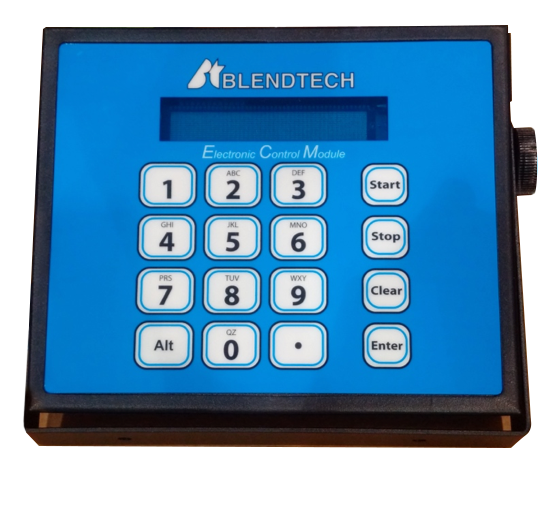

Electronic Control Module (ECM)
Brand: BlendtechThe Blendtech Electronic Control Module (ECM) Truck Mounted Smart Controller determines injection rates by analysing product flow and records inventory information in the ECM transaction logs.
Unique to Blendtech, the EMC uses continuous injection to increase product quality and reduce costs of ownership.
Continuous injection requires the control module to continuously determine the optimal injection size and interval required to output the desired treatment rate for the duration of the loading process.
The ECM has an integrated Injector Block (MiniBlock) with a built-in meter, solenoid valve, needle valves, strainer and Calibration port.
This block is designed with unique mechanical components that allow an electronic microprocessor to control the injection rates with a high degree of accuracy.
The ECM also supports Blendtech’s Blendcomm Management and Control Software Package which adds advanced control features such as BOL generation, remote authorization and on-line inventory.
Features- Additive pretreatment
- Clean starts | Line Flush – no contamination
- Additive and product totals
- Error checking and alarm generator
- Supports variety of flow meters
- Accepts flow meter pulse rates up to 15 kHz
- Provides for calibration of each flow meter pulser
- Additive Overtreat
- Nonvolatile memory and transaction log
- Hazardous area options available
- Indoor and outdoor usage with appropriate enclosure
- Pump control for additive
- Simulation mode
- Bluetooth Remote for use in Classified Area
Specifications
Brand
Power Supply
- 8V to 36V DC, 150 Watts
Digital Input
- 7 FLEx iO DC Inputs
- 2 high speed FLEx iO Inputs with a 15Hz maximum count rate
- Max. open circuit voltage: 36V
- Max. short circuit voltage: 1 mA
Safety
- Completely solid-state design
- No open electrical contacts
- Brushless DC motor
Event Log
- Up to 200 entries/transactions
Digital Output
- 6 high speed FLEx iO Outputs
- 5 high side switch, short circuit and load protected. Thermally protected. Maximum load 36V DC, 5 Amps
- 1 solid state relay output. Maximum load 60V, 2 Amps
Display
- 20 character, 2 line VFD
Motor Control
- Brushless DC motor controller
Communication
- 2 serial communication ports, RS-485 and RS-232 with surge protection
- Selectable Baud rate between 1200 to 19200
- MODBUS ACSII System
- Optional report printer
