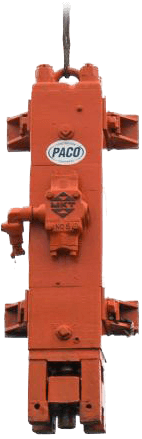

MKT #5 Air Hammer
Brand: PACO Ventures, LLC
Features
- Drive and Pull Sheet and Light Bearing Pile
- Drive Sectional Underpinning
- Drive and Pull Horizontal Tie Bars
- Mount on a crane, wheel tractor, fork-lift, hydraulic excavator, etc.
- Deliver high-production, uncushioned, ram-to-pile blows
- Contain low-maintenance, free floating rams
- Use easily-attached, pile-protecting drive caps
- Have pre-drilled legs for attachment of inexpensive pile-lead adapters
- Power with steam or air
Specifications
Brand
Ram Weight
- 200 lb (91 kg)
Hammer Weight
- 1,500 lb (680 kg)
Length
- 4'7" (1,397 mm)
Maximum Energy
- 1,000 ft-lb (138 kgm)
Blows Per Minute
- 300 bpm
Air Required
- 250 cfm (7 m²/min)
Inlet Pressure
- 100 psi (7 bar)
Type
- Double-Acting
