MZCG Sensor for T-Slot Cylinders

Brand: Sick AG

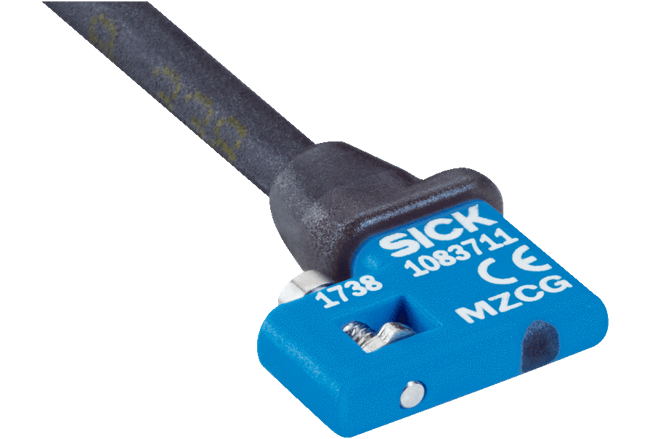

The MZCG magnetic cylinder sensor detects the piston position in pneumatic grippers and pneumatic miniature cylinders.  Thanks to its very small design, the MZCG is particularly well-suited for the C-slots of very small pneumatic actuators such as are used in handling and assembly, robotics or the electronics industry.

The sensor is simply inserted in the C-slot and can be quickly and safely fastened on the cylinder. The MZCG fits in a wide range of C-slots of various manufacturers due to its universal housing design. This reduces storage costs, enables flexible machine design and easier service.

At a glance
  • Extremely small housing (12.2 mm) for applications in pneumatic grippers and miniature cylinders
  • Fits in all commonly-used C-slots, e.g. from Schunk, Zimmer, Festo or SMC
  • Short, precise switching point, ideal for applications with small stroke
  • Cable suitable for drag chain
  • LED for indicating the output state
  • IP68 enclosure rating
Features
  • Extremely small housing saves installation space, thereby increasing efficiency of the system
  • Shorter switching point optimized for gripper applications increases process efficiency due to higher PSDI times
  • Suitable for a wide range of applications: It fits into all standard C-slots, regardless of the cylinder profile or make
  • Reduced storage costs, flexible machine design and easier service
  • Inserting the sensor into the slot is quick and easy
  • The rugged mounting holds the sensor in the required position, even when exposed to shock and vibration, and increases the reliability

1 - 8 of 8 Part Numbers
1083699
1083699
  • Connection Type - Cable with Connector M8, 3-Pin, 0.3 m
  • Switching Output - PNP
  • Type - MZCG-1Z7PS-KP0
1083701
1083701
  • Connection Type - Cable with Connector M8, 3-Pin, 0.3 m
  • Switching Output - NPN
  • Type - MZCG-1Z7NS-KP0
1083703
1083703
  • Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
  • Switching Output - PNP
  • Output Fuction - NO
  • Type - MZCG-1Z7PS-KR0
1083704
1083704
  • Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
  • Switching Output - PNP
  • Output Fuction - NC
  • Type - MZCG-1Z7PO-KR0
1083705
1083705
  • Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
  • Switching Output - NPN
  • Output Fuction - NO
  • Type - MZCG-1Z7NS-KR0
1083706
1083706
  • Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
  • Switching Output - NPN
  • Output Fuction - NC
  • Type - MZCG-1Z7NO-KR0
1083707
1083707
  • Connection Type - Cable with Connector M12, 3-Pin, 0.3 m
  • Switching Output - PNP
  • Type - MZCG-1Z7PS-KQ0
1083709
1083709
  • Connection Type - Cable with Connector M12, 3-Pin, 0.3 m
  • Switching Output - NPN
  • Type - MZCG-1Z7NS-KQ0
1 - 8 of 8 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC
  • cULus

Enclosure Rating

  • IP68

Switching Output

  • PNP
  • NPN

Output Function

  • NO / NC

Cylinder Type with Adapter

  • SMC Rail CDQ2
  • SMC Rail ECDQ2

Housing Length

  • 12.2 mm

Supply Voltage

  • 10-30 Vdc

Communication Interface

  • IO-Link

Electrical Wiring

  • DC 3-Wire
  • Cable with Connector M8, 3-Pin, with Knurled Nuts

Cable Length

  • 0.3 to 5 m

  • Open-close position detection in pneumatic grippers
  • End position detection in pneumatic miniature cylinders
  • Industries: Electronics, handling and assembly (e.g. small part assembly), robotics and packaging
