Yokogawa Magnetic Flow Meter, ADMAG AXW

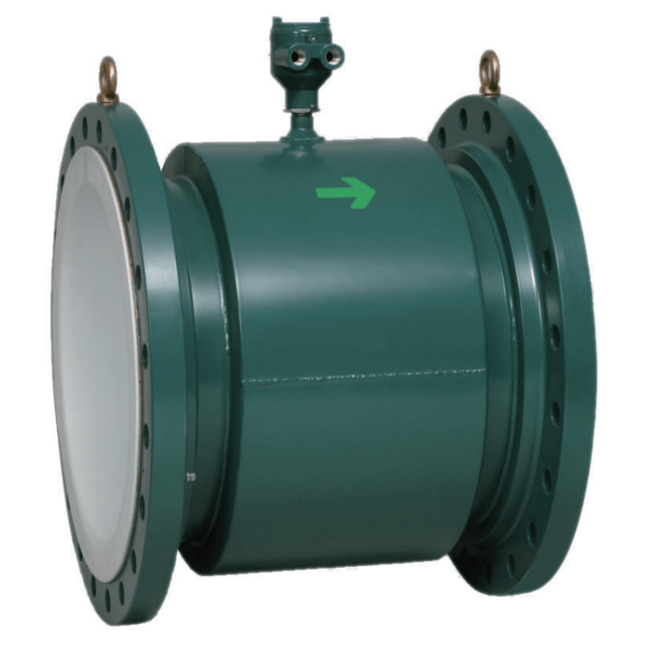

ADMAG AXW Magnetic Flow Meter

Brand: Yokogawa Electric Corporation
Add Product to My Catalog

The ADMAG Total Insight (TI) AXW is an electromagnetic flow meter featuring enhanced settings for customized setups, pre-defined trend views, and multiple configuration sets for fast changeover through microSD card.

The ADMAG TI AXW comes standard with built-in verification, reducing total cost of ownership.
Features
  • Diameter: 1” to 72” (25mm to 1800mm)*
  • Liner materials: PTFE, Variety of rubbers
  • Accuracy: ±0.35% of flow rate
  • Ideal for water supply/sewage applications and general industrial process lines
  • Submersible version available 1” to 72” (25 to 1800mm)

Specifications

Brand

Accuracy

  • ± 0.05 % of Span + Pulse Output Accuracy - Current Output Accuracy
  • ± 0.35 % of Rate - for Sizes 20 to 40” (500 to 1,000 mm)
  • ± 0.4 % of Rate ± 1.8 mm/sec
  • ± 0.5 % of Rate - for Sizes 44 to 72” (1,100 to 1,800 mm)

Ambient Temperature Range

  • -10° to 60° C (14° to 140° F)

Applications

  • Industrial Process Lines
  • Sewage
  • Water Supply

Approvals & Certifications

  • Hydrostatic Pressure Test
  • Material Certificate

Approvals & Certifications

  • EMC EN 61326-1 Class A, EN 61326-2-3, EN 61000-3-2 Class A, EN 61000-3-3

Cable Length

  • 660 feet (201.2 metres) - Max.

Conductivity

  • Fluid Conductivity: 20 µS/cm or Larger for Sizes 1,000 mm & Below
  • Fluid Conductivity: 50 µS/cm or Larger for Sizes 1,100 mm & above

Conduit Connection

  • G 3/4”

Consumption

  • 20 W: Combined with AXFA11

Diameter

  • 0.26” to 0.47” (6.5 to 12 mm) - Outer Diameter

Electrical Connectors

  • ANSI 1/2” NPT Female
  • ISO M20 x 1.5 Female
  • JIS G 1/2” (PF 1/2”) Female
  • M4 Screw Terminal

Enclosure Finish

  • Corrosion-Resistant Coating - Pipe, Housing, Flange, Terminal Box for General-purpose Typical
  • Mint Green Paint
  • Non-Tar Epoxy Coating (Black) - Pipe, Housing, Flange, Terminal Box for Submersible Typical

Enclosure, Body Material

  • Carbon Steel

Environmental Protection

  • IP66 - for General-purpose Typical
  • IP67 - for General-purpose Typical
  • IP68 - for Submersible Typical

Flange Material

  • Carbon Steel

Flange Size - 20” (DN 500)

  • 20” (DN 500) - 150# ASME B16.5
  • 20” (DN 500) - JIS 10K
  • 20” (DN 500) - PN 10
  • 20” (DN 500) - PN 16

Flange Size - 24” (DN 600)

  • 24” (DN 600) - 150# ASME B16.5
  • 24” (DN 600) - JIS 10K
  • 24” (DN 600) - PN 10
  • 24” (DN 600) - PN 16

Flange Size - 28” (DN 700)

  • 28” (DN 700) - 150# (ASME B16.47)
  • 28” (DN 700) - JIS 10K
  • 28” (DN 700) - PN 10
  • 28” (DN 700) - PN 16

Flange Size - 32” (DN 800)

  • 32” (DN 800) - 150# (ASME B16.47)
  • 32” (DN 800) - JIS 10K
  • 32” (DN 800) - PN 10
  • 32” (DN 800) - PN 16

Flange Size - 36” (DN 900)

  • 36” (DN 900) - 150# (ASME B16.47)
  • 36” (DN 900) - JIS 10K
  • 36” (DN 900) - PN 10
  • 36” (DN 900) - PN 16

Flange Size - 40” (DN 1000)

  • 40” (DN 1000) - 150# (ASME B16.47)
  • 40” (DN 1000) - JIS 10K
  • 40” (DN 1000) - PN 10
  • 40” (DN 1000) - PN 16

Flange Size - 48” (DN 1200)

  • 48” (DN 1200) - PN 10
  • 48” (DN 1200) - PN 16
  • 48” (DN 1200) - PN 6

Flange Size - 56” (DN 1400)

  • 56” (DN 1400) - PN 10
  • 56” (DN 1400) - PN 6

Flange Size - 64” (DN 1600)

  • 64” (DN 1600) - PN 10
  • 64” (DN 1600) - PN 6

Flange Size - 72” (DN 1800)

  • 72” (DN 1800) - PN 10
  • 72” (DN 1800) - PN 6

Flow Rate

  • 0 to 311.3 to 0 to 403,341 gpm (0 to 70.69 to 0 to 91,608 m³/hour)

Gasket Material

  • Mixture of Styrene-butadiene Rubber (SBR) & Natural Rubber (NR)

Humidity

  • 0 to 100 % - Ambient Humidity

Insulation Resistance

  • 100 megaohms at 500 Vdc

Materials of Construction

  • Aluminum Alloy - Terminal Box
  • Stainless Steel - Pipe & Tag Plate

Mounting

  • Pipe

Mounting Position

  • Vertical

Pressure Range

  • psi: -14.5 to 145 (MPa: -0.1 to 1, bar: -1 to 10) - Fluid Pressure

Repeatability

  • ± 0.1 % of Rate ± 1 mm/sec - for V< 1 m/sec (3.3 feet/sec)
  • ± 0.2 % of Rate - for V≥ 1 m/sec (3.3 feet/sec)

Resistance

  • 100 ohms or Less - Grounding Resistance

Ring Material

  • 304 Stainless Steel - Grounding Ring
  • JIS SUSF304 (AISI 304 Stainless Steel Equivalent) - Grounding Ring

Rotation

  • 180° Rotated Terminal Box to Change the Direction of the Electrical Connection
  • 90° Rotated Terminal Box to Change the Direction of the Electrical Connection
  • -90° Rotated Terminal Box to Change the Direction of the Electrical Connection

Seat / Seal Material

  • EPDM - Sealing for Natural Hard Rubber

Temperature Range

  • -10° to 120° C (14° to 248° F) - Fluid Temperature

Wetted Materials

  • Fluorocarbon PTFE - Lining
  • Hastelloy C-276 Equivalent - Electrode
  • JIS SUS316L (316L Stainless Steel Equivalent) - Electrode
  • Natural Rubber (Hard & Soft) - Lining
  • Polyurethane Rubber - Lining

Wiring

  • 0.5 to 1.5 mm² - Nominal Cross Section for Stranded Wire
  • 0.5 to 2.5 mm² - Nominal Cross Section for Single Wire

Documentation

Data Sheets

Product Manuals

Brochure

Product Drawing

Specification
