Yokogawa Pitot Tube Flow Sensor, V510

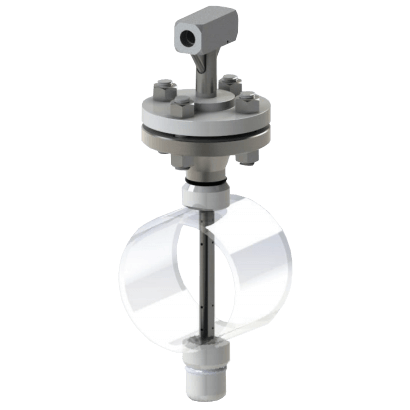

V510 Verabar Pitot Tube Flow Sensor

Brand: Yokogawa Electric Corporation
Add Product to My Catalog

Developed from aerospace technology, the Verabar® averaging pitot flow sensor provides unsurpassed accuracy and reliability.

With its solid, one-piece construction and bullet shape, the Verabar makes flow measurement leak proof and precise.

The unique sensor shape reduces drag and flow induced vibration.

The location of the low-pressure ports eliminates the potential for clogging and improves signal stability.
Features
  • All-welded mounting
  • Preferred mounting in power, petrochemical benefits and refining industries
  • Can mount to existing flanges

View_Details

Specifications

Brand

Applications

  • Air
  • Hazardous Fluids
  • Hydrocarbon Liquids & Gases
  • Large Pipes & Ducts
  • Natural Gas
  • Steam
  • Water (Raw, Cooling, Feedwater)

Cap Material

  • Carbon Steel - Weld Cap
  • Stainless Steel - Weld Cap

Flange Material

  • Carbon Steel - Weld Neck Flange
  • Stainless Steel - Weld Neck Flange, Sensor Flange

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 1500# ANSI
  • 1-1/2" (DN 40) - 2500# ANSI
  • 1-1/2" (DN 40) - 300# ANSI
  • 1-1/2" (DN 40) - 600# ANSI
  • 1-1/2" (DN 40) -150# ANSI

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ANSI
  • 1" (DN 25) - 1500# ANSI
  • 1" (DN 25) - 2500# ANSI
  • 1" (DN 25) - 300# ANSI
  • 1" (DN 25) - 600# ANSI

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# ANSI
  • 2" (DN 50) - 1500# ANSI
  • 2" (DN 50) - 2500# ANSI
  • 2" (DN 50) - 300# ANSI
  • 2" (DN 50) - 600# ANSI

Head Material

  • Stainless Steel - Instrument Head

Instrument Connection

  • 1/2" NPT

Materials of Construction

  • Carbon Steel - Weld Coupling
  • Stainless Steel - Weld Coupling

Media

  • Gas
  • Liquids
  • Steam

Mounting

  • Direct Mounting
  • Manifold
  • Remote Mounting

Mounting Position

  • Horizontal
  • Vertical

NACE & NIST

  • NACE

Pipe Size

  • 12" to 192" (300 to 5,000 mm)
  • 2" to 6" (50 to 150 mm)
  • 6" to 48" (150 to 1,200 mm)

Pressure Range

  • psig: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)

Pressure Type

  • Differential
  • Gauge

Sensor, Probe Diameter

  • 1-3/8" (35 mm) - Sensor Diameter
  • 7/16" (11 mm) - Sensor Diameter
  • 7/8" (22 mm) - Sensor Diameter

Sensor, Probe Material

  • 316 Stainless Steel

Sensor, Probe Type

  • RTD

Temperature Range

  • 38° to 815° C (100° to 1,500° F)

Welded Connection

  • Socket Weld

  • Air
  • Hazardous Fluids
  • Hydrocarbon Liquids & Gases
  • Large Pipes & Ducts
  • Natural Gas
  • Steam
  • Water (Raw, Cooling, Feedwater)
