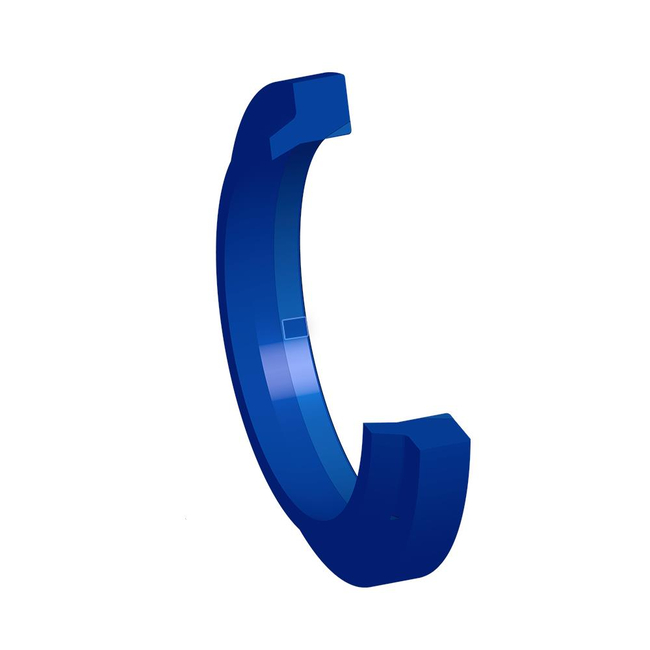

Single-Acting Rod Wiper Seal for Pneumatics & Hydraulics (SHD)
Brand: Parker HannifinSingle-acting rod wiper seals with slotted heel for pneumatics, and light to medium-duty hydraulics.
Parker’s SHD Profile wiper seals is an outstanding choice for light and medium duty hydraulic and pneumatic. The slotted heel design prevents pressure traps from forming between the rod seal and wiper.
The snap-in design is oversized, ensuring a snug fit, excellent stability, and that the wiper lip maintains contact with the rod at all times.
This makes the SHD Profile a great all-round industrial snap-in wiper that retrofits many typical commercial glands. Parker offers broad tooling availability, up to 30", making the SHD a good choice for large rod diameters.
Specifications
Brand
Color
- Varies Depending on Material
Fluid Compatibility
- Varies Depending on Material
Gland Depth
- 0.124 to 0.499"
Groove Width
- 0.124 to 0.499"
Industry Standards
- None, API 6A (FF / HH) (10 % Sour Gas)
Length Unit of Measure
- inch
Maximum Surface Speed (ft/min)
- 100 (0.5 m/sec)
Maximum Width (inch)
- Maximum
Maximum Working Temperature (°F)
- 400° F
Media
- Hydraulic, Multiple
Minimum Working Temperature (°F)
- -70° F
Nominal Hardness
- 90A, 60D, 95A
Polymer Family
- Various, TPU, Rubber
Shoulder Diameter (inch)
- 0.410 to 32.093"
Thermal Application (°F)
- Varies Depending on Material
