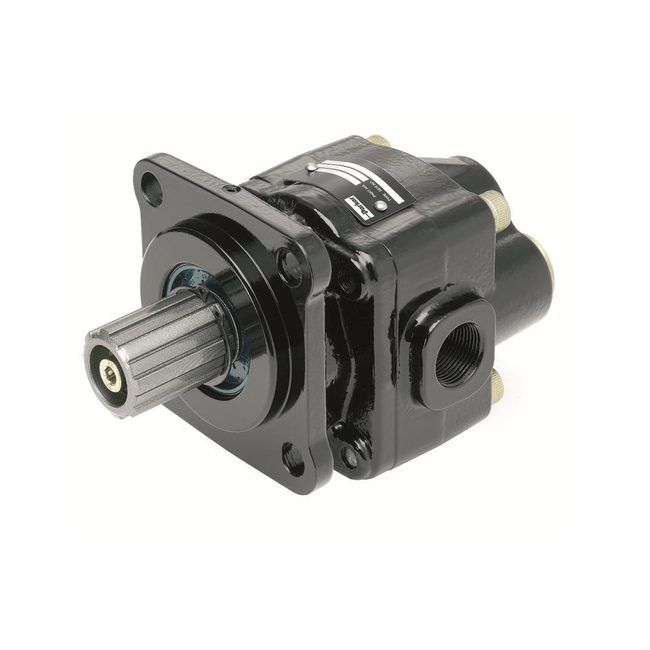

Cast Iron Pumps - Series GP1
Brand: Parker HannifinParker Cast Iron Pump GP1 Series fixed displacement gear pump offers high performance and high power density dues to its two-piece cast iron construction, making it an ideal selection for the Aerial and Material Handling markets.
Features- Three-piece construction for distribution flexibility
- Aluminum pumping sections for light weight
- Journal bushings for long life
- Pressure balanced thrust blocks for high efficiency
- Multiple sections available
Specifications
Brand
Body Material
- Cast Iron
Case Drain Option
- No
Charge Pump Option
- No
Circuit Type
- Open
Configuration
- Single
Control Method
- Consult Parker
Energy Recovery Capable
- No
Filtration Option
- No
Fluid Type
- Standard Hydraulic Fluid
Maximum Displacement (cm3/rev)
- 80
Maximum Displacement (inch3/rev)
- 4.88
Maximum Flow (gpm)
- 34.32
Maximum Flow (Lpm)
- 130
Maximum Fluid Temperature (°C)
- 120° C
Maximum Fluid Temperature (°F)
- 248° F
Maximum Noise Level (dBA)
- Consult Parker
Maximum Operating Pressure (bar)
- 300
Maximum Operating Pressure (psi)
- 4350
Maximum Radial Shaft Load (kg)
- Consult Parker
Maximum Radial Shaft Load (Lbs)
- Consult Parker
Maximum Speed (rpm)
- 2000
Maximum Viscosity (SUS)
- 4664
Maximum Weight (kg)
- 14
Maximum Weight (Lbs)
- 30.8
Media
- Hydraulic
Minimum Fluid Temperature (°C)
- -40° C
Minimum Fluid Temperature (°F)
- -40° F
Minimum Viscosity (SUS)
- 38
Mounting Option
- ISO
Port Connection
- BSPP
Port Connection Type
- Consult Parker
Porting Location
- Side Ports / Rear Ports
Pump Technology
- Gear
Pump Type
- Fixed
Rotation
- Clockwise / Counter Clockwise / Bi-Rotational
Sensor Type
- Consult Parker
Shaft Type
- ISO
Thru-Drive Capability
- No
- Aerial Lift
- Tipper
- Medium Duty Crane
- Hydraulic Power Unit
