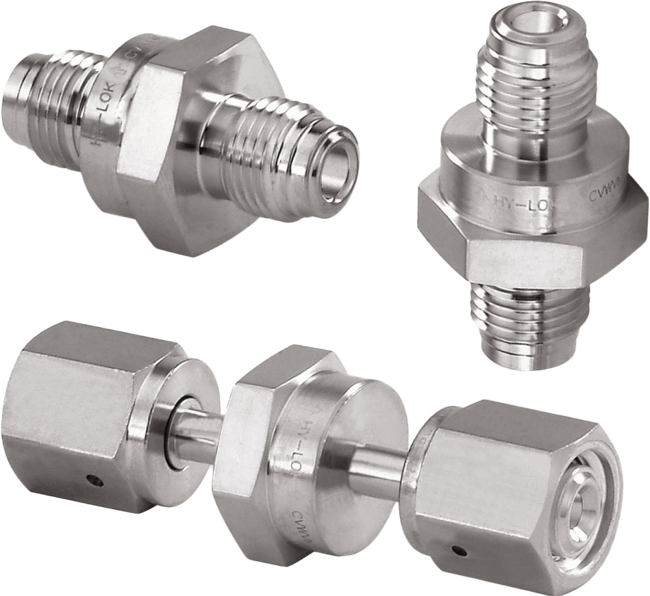

CVW Series All Welded Check Valve
Brand: Hy-Lok USA, Inc
Features
- All welded design provides excellent sealing of fluid
- Compact design
- Maximum working pressure is up to 3,000 psig (206 bar)
- Temperature rating is up to 400° F (204° C)
- ZCR, tube butt weld and Hy-Lok tube fitting
- 100% helium leak tested
Specifications
Brand
Body Material
- 316L SS/A479
Pressure Rating
- Maximum 3,000 psig (206 bar) @ 100° F (38° C)
Temperature Rating
- -10° to 400° F (-23° to 204° C)
Poppet/Stopper Material
- Type 316/A479
End Connection
- Male ZCR Fitting
- Female ZCR Fitting
- Tube Butt Weld
- Hy-Lok Tube Fitting
Spring Material
- Elgiloy/AMS5876
Certifications & Approvals
- American Bureau Shipping
- Lloyd's Register
- Germanischer Lloyd
- DNV
- ISO 9001
- ASME SECT III (MO)
- Semiconductor
- Biotech
- Pharmaceutical
- Ultra-Pure Flammable, or Toxic Fluid Line
