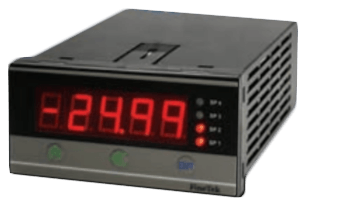

PM-1530 Microprocessor Digit Display Panel Meter
Brand: FineTekPM-1530 are single channel models with 5 digit LED display respectively.
Features- 5 digits LED numeric display
- Wide range of user definable scaling ratio
- Modulized input signal boards available for different applications
- Optional output boards with isolated Analog & relay output
- 85-265 Vac or 18-36 Vdc switching power supply
- Support volume adjustment function for non-linear tanks
- IP54 Class front panel
Specifications
Brand
Accuracy
- ± 1-Digit
- 0.1 % of Full Scale
Communication
- RS-485 Modbus Communication Protocol
Consumption
- Power Consumption: less than 7 VA
Display
- 5-digits, 0.56" 7-Segment Red LED
Electrical Contacts
- Normally Closed or Normally Open
Electrical Rating
- 3 A at 250 Vac
- 5 A at 30 Vdc
Environmental Protection
- Class Front Panel: IP54
Function
- Non-Linear Function: 20-Point Linearization for Non-Linear Tanks
Humidity
- 20 to 90 % RH (Non-Condensed)
Input
- 0-20 mA
- 0 to 200 mA
- 10 Vdc
- 100 mV
- 1-5 A
- 20 Vdc
- 200 mV
- 200 Vdc
- 2-600 Vac
- 4-20 mA
- 5 Vdc
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-10 Vdc
- 2-10 V
- Analog Output: 0-20 mA
- Analog Output: 4-20 mA
Power Supply
- 18-36 Vdc
- 20-250 Vac/Vdc, 50/60 Hz
- 85-265 Vac
Resolution
- ADC Resolution: 4-1/2-Digits
Sample Rate
- 24 Samples/second/Channel
Storage Temperature
- 0° to 70° C (32° to 158° F)
Switch Type
- SPST
Temperature Coefficient
- 200 ppm/°C
