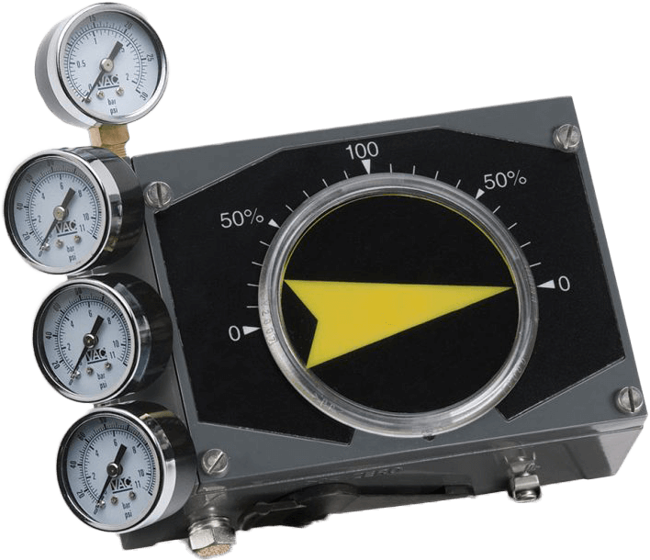

V100 Electropneumatic Intrinsically Safe Positioner

Brand: Valve Accessories & Controls
Add Product to My Catalog

Where Intrinsically Safe applications are required or accepted, this unit incorporates its basic operation from the base V100P and is converted to the Intrinsically Safe model with an internal I/P approved for these applications.

Intrinsically safe circuits utilize a safety barrier, located in a non-hazardous location, in conjunction with the IS positioner. IS circuits are allowed in Cenelec Zone 0, 1, and 2 and in Division 1 and 2 in North America.

The V100E-NI meets British Standards BS 6941:1988, Non-Incendive EX N II T6.
Features
  • Compact Design
  • Quality components = rugged and accurate performance
  • Screwdriver slots in the span and zero ferrules, along with external zero adjustments, helps make +calibrating the positioner simple
  • Easily maintain all key components
  • Clear, visible indicator with arrow indicator standard-beacon optional
  • Field changeable to any I/p option

Specifications

Brand

Input Range

  • 4-20 mA

Supply Pressure

  • 22 - 145 psi (0.15 - 1 MPa)

Linearity Error

  • < 1.0 % Full Scale

Hysteresis

  • < 0.5 % Full Scale

Repeatability

  • < 0.5 % Full Scale

Temperature Range

  • -40° to 185° F (-40° to 85° C)

Weight

  • 3.8 lb (1.7 kg)

Spool/Pilot Valves

  • Low Bleed/Low Gain
  • Standard
  • High Gain

Air Delivery

  • @ 29 psi (200 kPa): 9.5 scfm (270 slpm)
  • @ 87 psi (600 kPa): 28.3 scfm (800 slpm)
  • @ 145 psi (1 MPa): 47.1 scfm (1350 slpm)

Air Consumption

  • @ 29 psi: 0.18 scfm (5 slpm)
  • @ 87 psi: 0.53 scfm (15 slpm)
  • @ 145 psi: 0.88 scfm (25 slpm)

Bleed Rate at 87 psi (600 kPa)

  • Low Bleed/Low Gain: 0.4 scfm
  • Standard: 0.53 scfm
  • High Gain: 0.70 scfm

Pressure Gain

  • Low Bleed/Low Gain: 300:1
  • Standard: 750:1
  • High Gain: 1000:1

Air Connections

  • 1/4" NPT or G Threads

Gauges

  • 1/8" NPT or G Threads

Cable Entry

  • 1/2" NPT or M20 x 1.5 or PG 13.5

Ingress & Corrosion Protection

  • NEMA 4X & IP66

Standard Coating

  • Powder Polyester

Approvals

  • CENELEC: EEx ia IIC T4-T6
  • FM/CSA: Class I, Div. 1 Groups A, B, C, D, Class I, Div. 2 Groups A, B, C, D,
