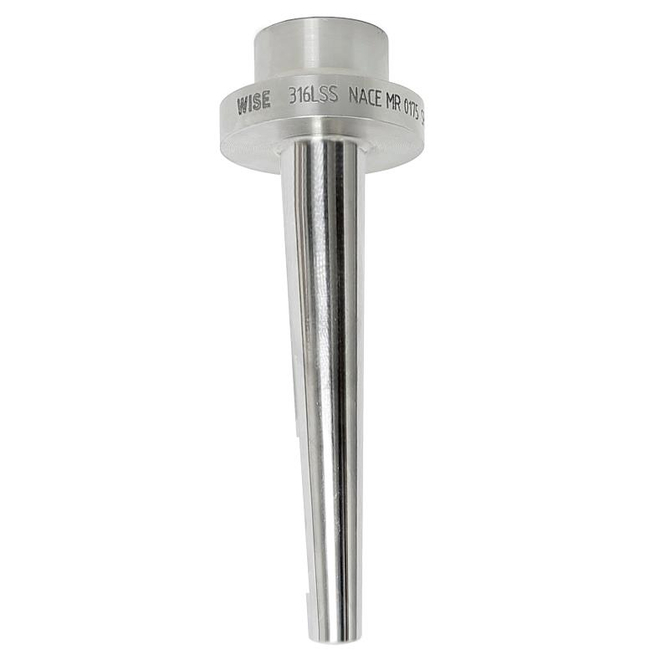

Vanstone Type Thermowell A640 Series
Brand: Wise Control IncVanstone type thermowell is produced without any welding process by processing the whole round bar.
Since it does not involve any welding process, it is used when high pressure, high velocity fluid and corrosive process media such as penetrating gas exist, and serving to isolate and protect from any leakage.
The required flange is not standard and can be provided as an optional extra.
Specifications
Brand
Selection of Thermowell - Bore Size
- Almost any installation uses several typical of Temperature measuring Instruments. The selection of a Standard bore diameter can produce extreme flexibility within the pant.
Selection of Thermowell - Insertion
- The Distance from the End of the Well to the Underside of the Thread or other Connection Means (Designated as ”U”) is the Insertion Length.
Selection of Thermowell - Material
- In General, the Thermowell Material Chosen for the Installation is Governed Mainly by the Corrosion Condition the Thermowell Will Face. Recommended Material for Various Services are Given in the Corrosion Table. Occasionally, the Material Consideration Is
Selection of Thermowell - Option
- WISE Inc. Offers This as an Engineering Service.
- Wake Frequency Calculations in Accordance with ASME PTC 19.3
Selection of Thermowell - Standard "T" Length
- Well Size 1-1/2” or DN 40: 40 mm, 2” or DN 50: 45 mm
Selection of Thermowell - Tapered or Straight Type
- Tapered Typical Thermowells Provide Greater Stiffness for the Same Sensitivity. the Higher Strength to Weight Ratio Gives These Thermowells Higher Natural Frequency Than for Equivalent Length Straight Typical Thermowells, Thus Permitting Operation at High
