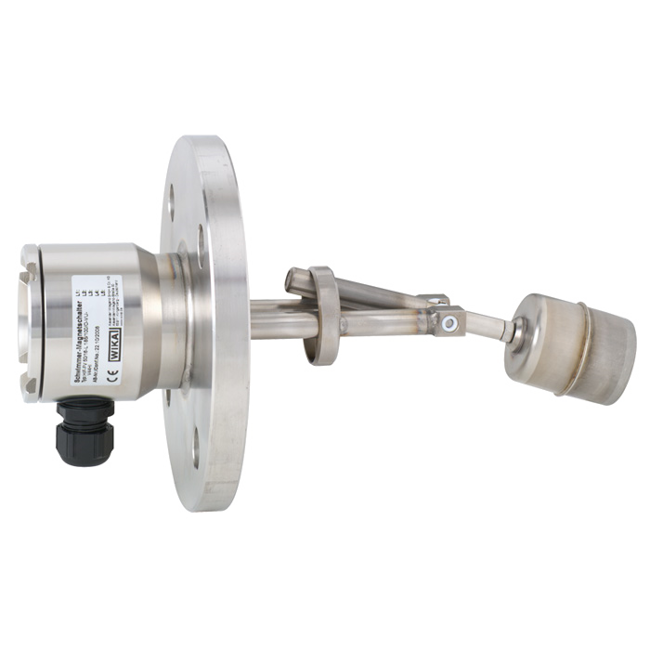

Magnetic Float Switch - HLS

Brand: WIKA Alexander Wiegand SE & Co. KG
Add Product to My Catalog

In addition to the various applications for float switches for vertical installation (model FLS), the model HLS horizontal float switches likewise offer innumerable possibilities to monitor and/or switch levels in order to indicate minimum/maximum levels.

The float is attached to a supported, swivelling lever and moves with the level of the medium being measured. By means of a permanent magnet, fixed to the end of the lever, when a preset switch point is reached, a reed contact (inert gas contact) within the contact tube is actuated.
Features
  • Large scope of application due to the simple, proven functional principleStainless steel and plastic versions.
  • Large scope of application due to the simple, proven functional principle.
  • For harsh operating conditions, long service life.
  • Operating limits:.
    • Operating temperature: T = -196 ... +350 °C.
    • Working pressure: P = vacuum to 232 bar.
    • Limit S. G.: ρ ≥ 600 kg/m.
  • Stainless steel and plastic versions.
  • Explosion-protected versions.

Specifications

Brand

Certifications & Approvals

  • EAC
  • CE
  • DNV GL
  • ABS

Enclosure / Body Material

  • Stainless Steel 1.4571 (316Ti)
  • Stainless Steel 1.4404 (316L)
  • Polypropylene (PP)
  • Plastic

Temperature Range

  • -120° to 350° C

Operating Pressure

  • Vacuum to 232 bar

Material of Construction

  • Float: Stainless Steel 1.4571, Titanium 3.7035
  • Connection housing: Stainless Steel 1.4571

Insertion Length

  • 190 to 990 mm

Environmental Protection

  • IP67

  • Level detection for almost all liquid media
  • Pump and level control
  • Chemical, petrochemical industry, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants
  • Process water and drinking water treatment

Documentation

Data Sheet

Operating Instructions
