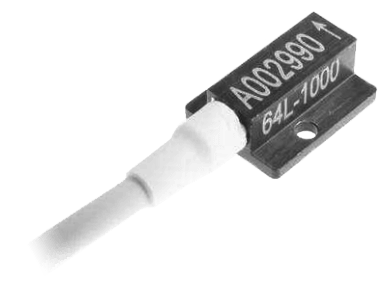

64L Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 64L Accelerometer is based on an advanced piezoresistive MEMS sensing element which offers exceptional dynamic range and stability.
This unit features a full bridge output configuration with a temperature range from 0 to +50°C. A slight amount of internal gas damping provides outstanding shock survivability and a flat amplitude/phase response up to >4kHz. The Model 64L is compliant with SAE J211 standards for anthropomorphic dummy instrumentation.
Features- Piezoresistive MEMS Sensor
- ±50 to ±6,000g Ranges
- 2-10 Vdc Excitation
- Low Noise Jacketed Cable
- 1% Transverse Sensitivity Option
- <±25 mV Zero Offset
Specifications
Accuracy
- ± 1 % of Reading - Non-Linearity
Applications
- Safety Crash Testing - Auto, Truck & Recreational Vehicles
- Shock Testing
Approvals & Certifications
- CE
- RoHS
Electrical Connectors
- 4 x #32 AWG Conductors PFA Insulated
- Braided Shield
Environmental Protection
- IP61
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 4,500 Hz
Insulation Resistance
- > 100 megaohms
Mounting
- 2 x #0-80 x 3/16” Socket Head Cap Screws
- Isolated from Mounting Surface
NACE & NIST
- NIST
Operating Temperature
- -40° to 121° C (-40° to 250° F)
Output
- ± 25 mV
Output Noise
- 10 µV RMS
Resistance
- 2,400 to 6,000 ohms
Sensitivity
- < 3 % - Transverse
- 1%
Shock
- 5,000 G
Storage Temperature
- -40° to 121° C (-40° to 250° F)
Thermal Drift
- ± 0.04 %/°C - Thermal Zero Shift
- -0.20 ± 0.05 % of Full Scale/°C - Thermal Sensitivity Shift
Torque
- 3 In/Lbs
