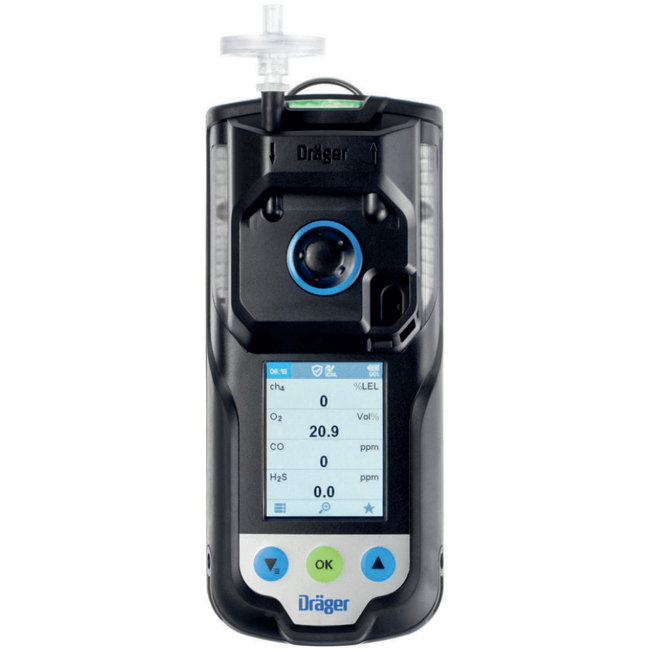

X-am 3500 Multi-Gas Detector
Brand: Drägerwerk AG & Co. KGThe Dräger X-am 3500 was especially designed for clearance measurements.
The 1 to 4 gas detector reliably detects flammable gases and vapors as well as O2, CO, H2S, NO2 and SO2.
The innovative signaling design and extensive range of accessories ensure optimum safety and easy handling.
Features- Multi-gas detector
- Specially designed for use with a pump, optimized for clearance measurement
- Clear signaling design
- Economical Fleet Management
- Inductive charging protects against wear and tear
Specifications
Brand
Approvals & Certifications
- ATEX
- CE
- CSA Class I, Zone 0, AEx da Ia IIC T4 Ga Div. 1, Groups E, F, G T4
- DNV GL
- EAC PO Ex da Ia I Ma X, Ex da Ia IIC T4 Ga X
- IECEx I M1, II 1 G Ex da Ia I Ma, Ex da Ia IIC T4 Ga
- MED
Approvals & Certifications
- EN 60079-29-1, EN 45544-1, EN 50104
Environmental Protection
- IP67
Humidity
- 10 to 90 % Relative Humidity
Operating Temperature
- -20° to 50° C (-4° to 122° F)
Pressure Range
- 700 to 1,300 hPa
