Danfoss Solenoid Valve, ICLX

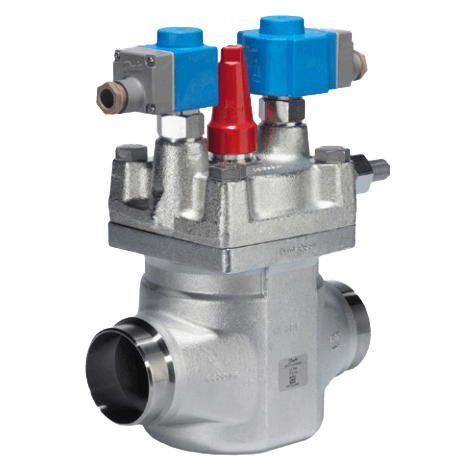

ICLX 32-150 Solenoid Valve

Brand: Danfoss
Add Product to My Catalog

Danfoss Solenoid Valve, ICLX
ICLX 2-step solenoid valves belong to the ICV family. ICLX are used in suction lines to open against high differential pressure, example: After a hot gas defrost in large industrial refrigeration systems with ammonia, fluorinated refrigerants or CO2.

The ICLX valve is factory configured to open in two steps. By following a simple procedure the valve can be configured to open in one step only.

In two step configuration
  • Step one opens to approximately 10% of the capacity after the pilot solenoid valves are energized.
  • Step two opens automatically when the pressure differential across the valve has decreased to approx. 1.25 bar (18 psig).
The ICLX valve comprises five main components: valve body, top cover, function module and two pilot solenoid valves. On ICLX 32-150 the top cover and function module are factory assembled.

View_Details

Specifications

Brand

Applications

  • Chemical & Petrochemical

Approvals & Certifications

  • BV
  • CE
  • CRN - Canadian Registration Number
  • DNV
  • EAC
  • UL

Bore Size

  • 1" to 6" (25.4 to 152.4 mm)

Cover Material

  • Top Cover: Low Temperature Steel

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure Finish

  • Zinc Chromated for Corrosion Protection

Enclosure, Body Material

  • Low Temperature Steel

Environmental Protection

  • IP67

Flow Capacity

  • 25.5 to 452 Cv (US Gallon/Min)

Flow Rate

  • 22 to 390 Kv (m³/hour)

Gasket Material

  • Fiber, Non-Asbestos

Gland Packing Material

  • Steel

Materials of Construction

  • Insert: Steel

Maximum Opening Pressure Differential

  • psi: 580.2 (kPa: 4,000, bar: 40)

Nut & Bolt Material

  • Bolt: Stainless Steel

O-Ring Material

  • Chloroprene (Neoprene)

Operating Pressure

  • psig: 754 (kPa: 5,199, bar: 52) Max.

Piston Material

  • Main, Bleed: Steel

Process Temperature

  • -60° to 120° C (-76° to 248° F)

Seat / Seal Material

  • Main, Bleed Seat Plate, Seal: PTFE

Spindle Material

  • Spindle Manual Opener: Stainless Steel

Spring Material

  • Main, Bleed: Stainless Steel

Welded Connection

  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3" Butt Weld End
  • 3" Socket Weld End
  • 4" Butt Weld End
  • 4" Socket Weld End
  • 5" Butt Weld End
  • 5" Socket Weld End
  • 6" Butt Weld End
  • 6" Socket Weld End

  • Chemical & Petrochemical
