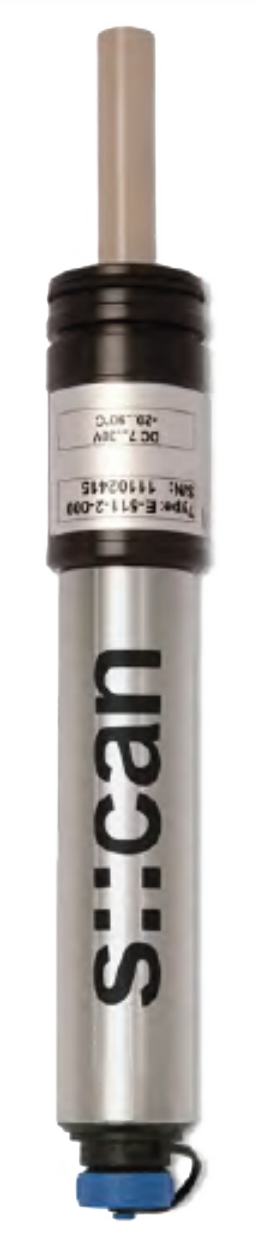

Condu::lyser Electrochemical Sensor

Brand: BM Technologies

Condulyser monitors conductivity, temperature and salinity Features:
  • S::can plug & measure

  • Measuring principle condu::lyser; 4-electrode direct-contact measurement

  • Multiparameter sensor

  • Ideal for surface water, ground water and drinking water, also waste water

  • Long term stable and maintenance free in operation

  • Factory pre-calibrated

  • Mounting and measurement directly in the media (InSitu) or in a flow cell

  • Operation via s::can terminals & s::can software

  • Plug connection or fixed cable
  • Specifications

    Accuracy

    • 1 % of Reading

    Approvals & Certifications

    • EMC
    • FDA
    • ISO 9001
    • TÜV

    Cable Length

    • 24.61 feet (7.5 metres)

    Communication

    • RS-485

    Consumption

    • Power Consumption: 0.06 W Typical
    • Power Consumption: 0.15 W, Max.

    Enclosure, Body Material

    • 316L Stainless Steel, 1.4435
    • EPDM
    • PEEK

    Environmental Protection

    • IP67
    • IP68

    Flow Rate

    • Flow Velocity: Max.

    Measuring Range

    • 0 to 500,000 μS/cm

    Operating Pressure

    • psi: 0 to 84.12 (kPa: 0 to 580, bar: 0 to 5.8)

    Operating Temperature

    • -20° to 110° C (-4° to 230° F) for Flow Cell
    • -20° to 60° C (-4° to 140° F) for Immersed

    Power Supply

    • 7-30 Vdc

    Principle of Operation

    • 4-Electrode, Direct-Contact

    Temperature Range

    • Integrated Temperature Sensor: -20° to 130° C (-4° to 266° F)
