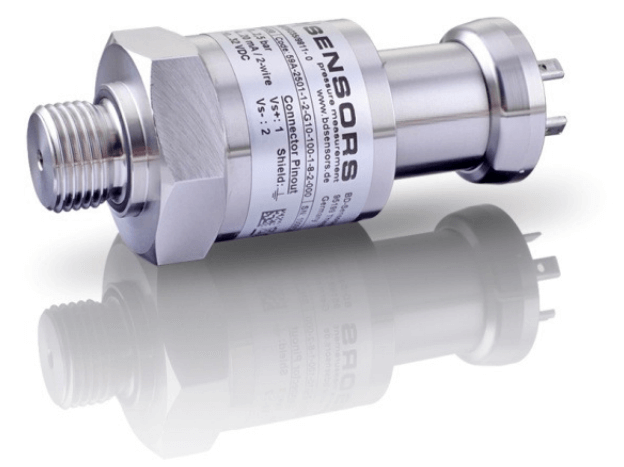

DMK 458 Pressure Transmitter
Brand: BD SensorsThe pressure transmitter DMK 458 has been developed for marine and offshore applications. In addition to thread connections, different flush versions are available, which are especially suitable for pasty, viscous, and polluted media.
Due to the capacitive ceramic sensor developed by BD Sensors, which is optionally available in Al₂O₃ 99.9%, the DMK 458 shows an outstanding accuracy as well as a high overload and temperature resistance.
Features- High overpressure resistance
- Excellent accuracy
Specifications
Brand
Approvals & Certifications
- ABS
- CCS
- CE
- DNV
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- Germanischer Lloyd (GL)
- IBExU 07-ATEX-1180 X, 2014/34/EU
- LLOYD
- Lloyd Register (LR)
- REACH
- RoHS
- TÜV NORD
BSP Connection
- G 1/2” Male (DIN 3852, EN 837)
Diaphragm Material
- Ceramic Al₂O₃ 96 %, Al₂O₃ 99.9 %
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- IP65
- IP67
- IP68
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - PN 40 (DIN 2501)
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 40 (DIN 2501)
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150# (ANSI B16.5)
- 2” (DN 50) - PN 40 (2501)
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150# (ANSI B16.5)
- 3” (DN 80) - PN 16 (DIN 2501)
NPT Connection
- 1/2” NPT Male
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0.03 to 19.61
- kPa: 3.92 to 1,961
- meter WC 0.4 to 200
- psi: 0.56 to 284.5
Pressure Type
- Absolute
- Gauge
- Mechanical and Plant Engineering
- Marine and Shipbuilding
