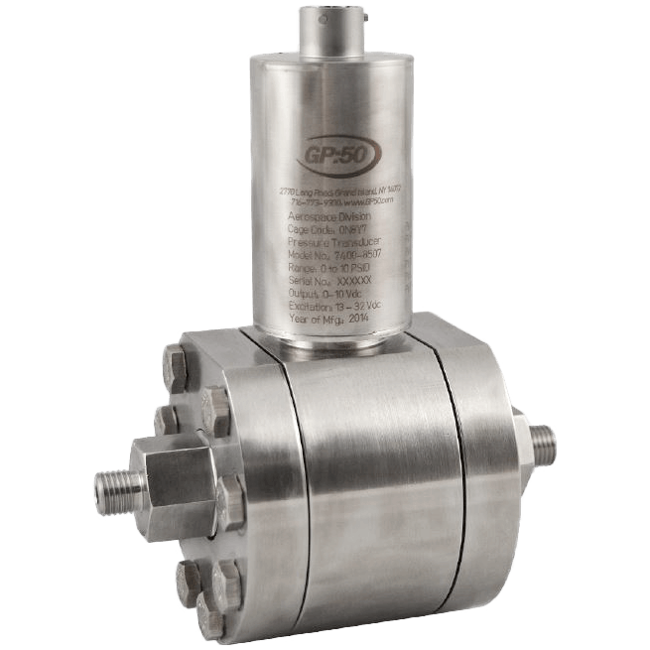

Model 7450 Differential Pressure Transducer
Brand: GP:50 New York Ltd
Features
- Output Signal: 0 to 5, 0 to 10, 4-20 mA
- Supply Voltage: 13 to 32 Vdc
- Pressure Range: 2.5" wc to 100 psid (6.895 bar, 682.5 kPa)
- Burst Pressure: 500 psi
- Proof Pressure: 500 psi
- Electrical Connections: PTIH-10-6P
- Process Connection: AS4395E04
- Temperature Range:
- Operating: -17° to 82°C (-0° to 180°F)
- Compensated: -2° to 82°C (32° to 180°F)
- Static Accuracy: Standard: <±0.1% FSO
- Materials of Construction:
- Housing: 316 Stainless Steel
- Wetted Parts: 316 Stainless Steel
- Sensor: Silicon oil filled
Specifications
Brand
Accuracy
- < ± 0.1 % of FSO by BFSL
- Thermal Error: ± 0.5 % of FSO at 38° C (100° F)
Burst Pressure
- 500 psi (35 bar, 3,447 kPa)
Compensated Temperature
- -2° to 82° C (32° to 180° F)
Electrical Connectors
- Bendix PTIH-10-6P
Enclosure, Body Material
- 316 Stainless Steel
Excitation Voltage
- 13 to 32 Vdc
Fill Material
- Silicone Oil
Frequency
- Flat to 100 Hz
Load Impedance
- ≤ 10,000 ohms
Operating Temperature
- -17° to 82° C (0° to 180° F)
Output
- 0-10 Vdc
- 0-5 Vdc
- 4-20 mA
Pressure Range
- 2.5 inH₂O to 100 psid
Proof Pressure
- psi: 500 (kPa: 3,447, bar: 35)
Resolution
- Infinite
Response Time
- < 10 ms for 90 % of FSO
Static Pressure
- 5,000 psi (34.5 bar 34,474 kPa)
Static Pressure Effect
- < 1 % of FSO 1,000 psi (7 MPa, 68.9 bar)
Wetted Materials
- 316 Stainless Steel
Zero Balance
- ± 0.5 % of FSO at 21.1° C (70° F)
