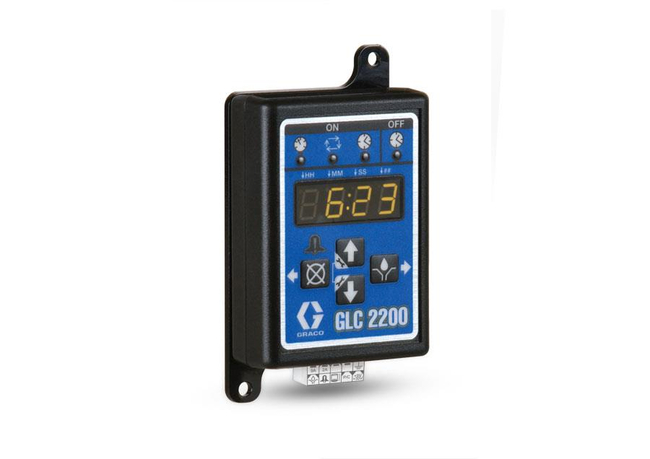

Graco Controller, GLC 2200

GLC 2200 Controller

Brand: Graco, Inc
Add Product to My Catalog

The GLC 2200 is a workhorse designed with user-friendly features you can really use.

Visual and audible alarms ensure your equipment is lubricated properly. Make smarter decisions about how you control your equipment. Choose the rugged GLC 2200 controller for in-cab monitoring of any 9-30 Vdc system.
Features
  • Programmable Pin Code Lock-Out keeps lubrication settings safe.
  • External Mounting Tabs make it easy to mount without having to open up the control box.
  • Monitoring LEDs let you know what your system is doing at a glance.
  • Easy to read digital display makes it simple to program and monitor your equipment.
  • In-cab visual and audible alarms lets the operator know your equipment needs attention. Or set up a remote audible alarm to alert service or maintenance staff.
  • Color coded wiring harness with flying leads and easy to follow wiring diagrams makes installations efficient.
  • Protection Grade IP54.

Specifications

Brand

Input Contact - Cycle / Pressure Control Input (Optional)

  • 9 - 30 Vdc, Normally Open Pressure or Cycle Switch

Input Contact - Lubrication Level (Optional)

  • Normally Open Level Switch, Closes Upon Low Level

Input Contact - Power Consumption

  • 1 Watt

Input Contact - Power Source DC

  • 9 - 30 Vdc

Outputs - Alarm Sound Pressure Level

  • 75 dB

Outputs - Enclosure Material

  • ABS

Outputs - Maximum Humidity

  • 90 % Relative Humidity, Non-Condensing

Outputs - Maximum Switching Current

  • 9 A (DC)

Outputs - Maximum Switching Voltage

  • 30 Vdc

Outputs - Membrane Material

  • Polyester

Outputs - Minimum Switching Current

  • 100 mA (DC)

Outputs - Operating Temperature Range

  • (- 40° to 80° C)

Outputs - Protection Grade

  • IP54 for Indoors & Vehicle Cab Use

Outputs - Pump Control

  • Pump Control Voltage = Power Source

Outputs - Storage Temperature

  • (- 40° to 80° C)

Outputs - Voltage

  • Alarm = Power Source
  • Pump Control Voltage = Power Source

Documentation

Document

Instructions

Wiring Diagrams
