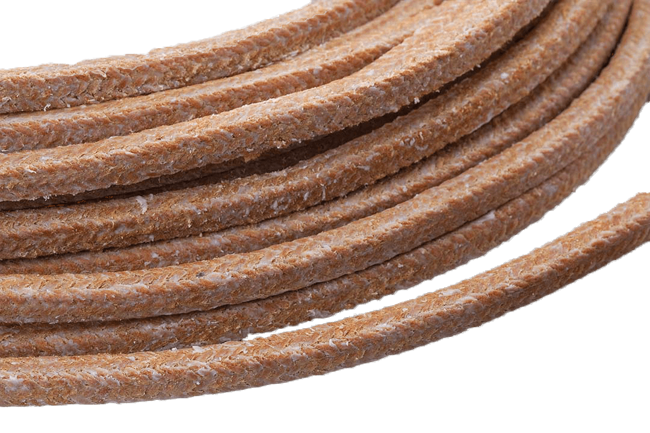

LATTYflon 7188 Braided Packing for Abrasive and Slurry Fluids
Brand: Latty International S.A.Packing made of phenolic compound yarns, each single yarn being impregnated with PTFE using our exclusive Filcoat-process.
The packing is then re-impregnated during braiding operation in a bath consisting of PTFE mixed with inert lubricant.
This process reduces frictions, improves the yarn chemical protection and therefore provides better sealing efficiency.
Very good mechanical properties combining softness and strength.
Available in preformed packing rings, on request.
High-performance synthetic packing, for slurries.
Features- Very good mechanical characteristics combining both suppleness and robustness
- Withstands abrasive contaminated liquids
- Very easy fitting operation
- Reduced running-in time
- Reduced retightening operations
- Technical yarns properties that limit sleeve heat and wear
- Silicone-free lubricant
- Reduced maintenance time
Specifications
Brand
Pressure
- 0 to 200 bar
- 0 to 20 MPa
- 0 to 2900 psi
Temperature
- -220° to 300° C
- -364° to 572° F
Speed
- < 20 m/s
pH
- 1 - 13
Approvals
- PMUC (N°17-0400)
Fluids
- All Industries using Abrasive and Slurry Fluids
- Sugar
- Food processing
- Paper
- Steel
