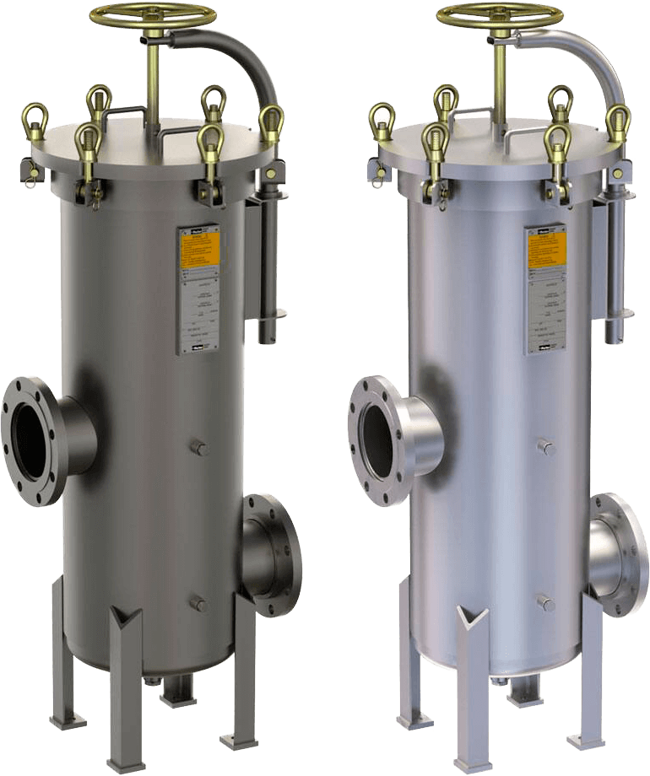

Fulflo SF Series Multi - Cartridge Filter Vessels | Carbon Steel, 304 & 316 Stainless Steel, ASME Code Design for Liquid & Gas Filtration

Brand: Domnick Hunter - by Parker
Add Product to My Catalog

Fulflo® SF multi-cartridge filter vessels meet a broad range of liquid and gas filtration applications. All details of design, materials, construction, and workmanship of the SF vessel series conform to ASME code.

The SF Vessel Series accommodates Double-Open-End (DOE) and Single-Open-End (SOE) filter cartridges in 10 in., 20 in., 30 in., and 40 in. equivalents.
Features
  • Designed and fabricated in accordance with the ASME Boiler and Pressure Vessel Code, U or UM stamp
  • Mechanical coverlifts of carbon steel construction standard on models SF12 and SF19
  • Designed for minimum pressure drop
  • External welded attachments on stainless steel models are also stainless steel
  • Dual purpose cartridge seats for use with DOE & 2-222 O-ring SOE filter cartridges
  • All SF models feature swing bolts with eyenuts for easier cleaning & servicing
  • O-ring seals provide positive closure
  • Hydraulic coverlifts optional on SF12 and SF19 models
  • Available in carbon steel, 304 & 316 stainless steel

View_Details

Specifications

Brand

Industry

  • Industrial
  • Inks, Paints and Coatings
  • Oil & Gas

Function

  • Polishing
  • Prefiltration
  • Clarification

Media

  • Carbon Steel
  • 316 Stainless Steel
  • 304 Stainless Steel

Filter Construction

  • Multi - Cartridge Filter Vessel

Specifications Met

  • ASME Sec. VIII, Div. 1, U Stamp

Maximum Operating Pressure

  • 150 to 300 psi / 10.3 to 20.7 bar

Maximum Operating Temperature

  • 500° F
  • 400° F
  • 300° F

Flow Rate

  • 15 gpm
  • 30 gpm
  • 45 gpm
  • 60 gpm
  • 90 gpm
  • 120 gpm
  • 180 gpm
  • 240 gpm
  • 285 gpm
  • 380 gpm

Seal Material

  • Buna-N (Max. 250° F)

  • Water Filtration
  • Solvent Filtration
  • Filtration of Concentrated Alkalies
  • Petroleum Oil Filtration
  • Potable Liquid Filtration
  • Dilute Acids and Alkalies Filtration
  • Photo Solution Filtration
  • Mineral Acids Filtration
  • Organic Acid Filtration
  • Filtration of Oxidizing Agents

Documentation

Data Sheets

Document
