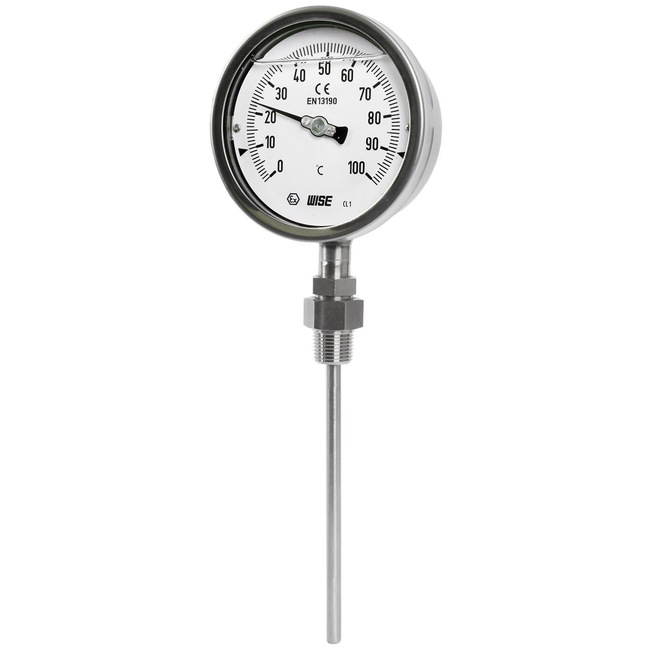

Liquid Filled Direct Reading Thermometer T229
Brand: Wise Control IncLiquid filled thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment.
Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
Case
- 304 Stainless Steel
Cover
- 304 Stainless Steel
Dial
- White Aluminum with Black Graduations
Filling Liquid
- Glycerin or Silicone
Location of Stem
- Bottom Connection, Direct Lower Back Connection, Direct
Measuring System (SAMA Class ⅢB)
- Inert Gas: -200 ~ 700° C
- Organic Gas: 0° to 200° C
Nominal Diameter
- 100 & 150 mm
Options
- ± 1.0 % of Full Scale
Pointer
- Black Painted Aluminum Alloy
Stem
- 316 & 316L Stainless Steel
- 8.0, 10.0 & 12.0 mm
Stem, Process Connection
- 3/8”, 1/2”, 3/4” PT, NPT & PF
Window Material
- Tempered Safety Glass
Working Range
- Maximum
