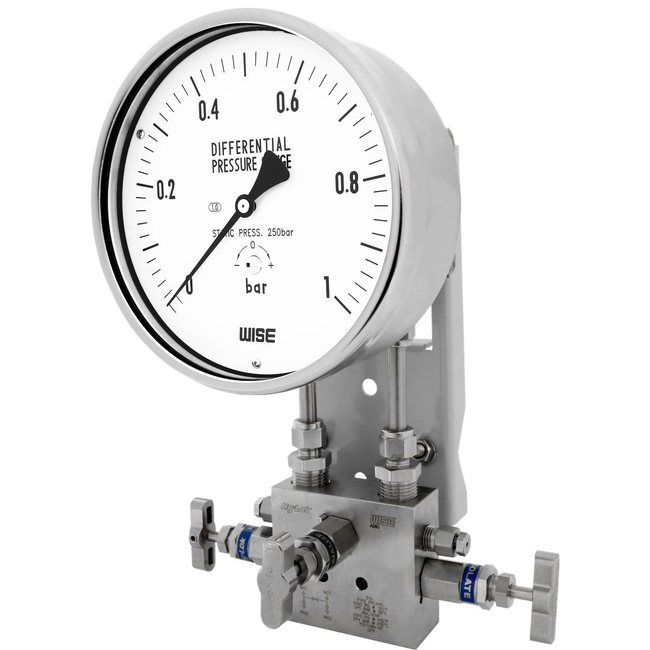

Differential Pressure Gauge P620, P630 Series
Brand: Wise Control IncP620 and P630 series are designed to measure differential pressure from 1 kPa to 1.5 MPa at static pressure up to 5 and 25 MPa.
A set of stainless steel bellows mounted on a force balance allows direct reading of the actual differential pressure.
Specifications
Brand
Accuracy
- ± 1.0 % of Full Scale
- ± 1.6 % of Full Scale
Approvals & Certifications
- Pressure Equipment Directive (2014/68/EU) Annex III Module H
Case
- 304 Stainless Steel
Cover
- 304 Stainless Steel Bayonet Typical
Degree of Protection
- EN 60529 / IEC 529 / IP67
Dial
- White Aluminum with Black Graduations
Element
- Bellows
- 316L Stainless Steel
Nominal Diameter
- 100 & 160 mm
Options
- 3-Way Manifold Valve (316 Stainless Steel, Monel)
- 5-Way Manifold Valve (316 Stainless Steel, Monel)
- Remote Seal
- Mounting Bracket with 316 Stainless Steel for 2" Pipe Mounting
Pointer
- Black Painted Aluminum Alloy
Pressure Connection
- 316 Stainless Steel
Process Connection
- 1/2" NPT Female at 3-Way & 5-Way Manifold Valve
- 1/4" NPT Female
Scale Range (MPa, KPa, bar)
- 0 to 1 kPa to 0 to 50 kPa
- 0 to 0.1 MPa to 0 to 1.5 MPa
Standard Accessories
- Mounting Bracket for 2" Pipe
- Mounting with Silver Gray Finished Steel
Static Pressure
- P620: 5 MPa
- P630: 25 MPa
Temperature Effect
- Accuracy at Temperature Above & Below the Reference Temperature (20° C) Will be Effected by Approximately
- ± 0.5 % Per 10° C of Full Scale
Window Material
- Safety Glass
Working Temperature
- Ambient: -20° to 65° C
- Fluid: Max.
