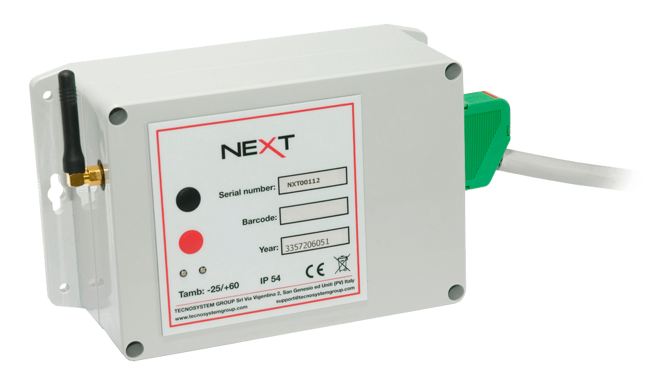

NEXT Multichannel Remote Monitoring Unit
Brand: Pietro Fiorentini S.p.A.Multichannel data logger for DC and AC measurements, Next is one of Pietro Fiorentini’s Smart Gas Grid devices specifically designed for cathodic protection monitoring.
It is a flexible instrument capable of adapting to all technical field requirements, meeting the needs of cathodic protection operators. It can be used in high-pressure transmission systems and in medium and low pressure distribution steel pipelines.
Features- Working temperature: from -20° to +60° C
- Data transmission: GPRS – GSM
- Sampling frequency: 1 ms (programmable)
- Measurement frequency: 1 s (programmable)
- Data storage frequency: 1 s (programmable)
- Transmission frequency: programmable
Specifications
Brand
Sampling Frequency
- 1 ms
Measure Frequency
- 1 s
Storage Frequency
- 1 s
Impedance
- 10 Megaohm
Electrical Separation Among Channels
- 500 V
Accuracy
- 1%
Power
- Battery Package
Data Storing
- 70 days
Working Temperature
- -20° to +60° C
