Gemini Magnetic Level Indicator

Brand: Orion Instruments

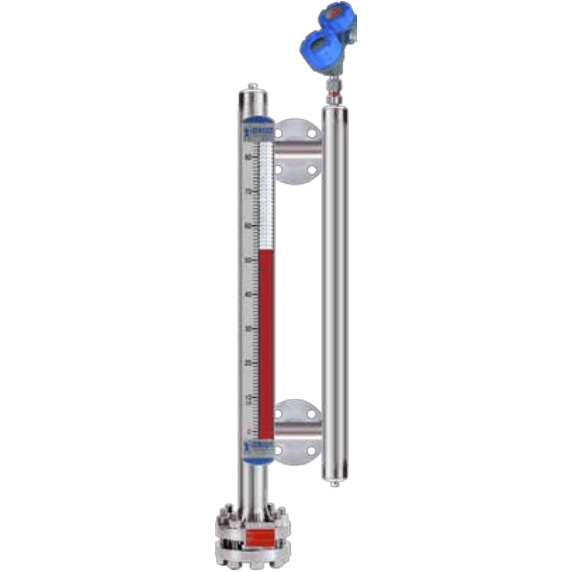

Orion’s twin chamber design is unique to the Magnetic level gauge industry. Countless unique configuration styles are available with Gemini. It can be produced in the same metal material selections as Atlas. The second chamber facilitates the installation of any of a wide selection of transmitters to provide continuous level monitoring in addition to the indication provided by the primary chamber.

Eclipse guided wave radar, direct insertion Jupiter®magnetostrictive, or Kotron capacitance type level transmitters can be mounted in the secondary chamber to provide totally redundant indication with continuous level output. The primary chamber, which houses the float, can be fitted with clamp-on switches or transmitters for additional level control.
