Axial Valves

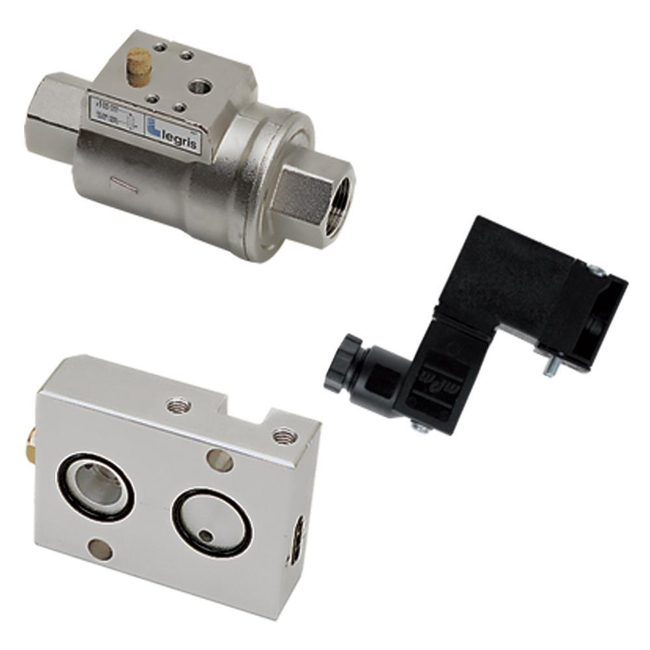

Brand: Legris - by ParkerThe Parker Legris axial valve is the only valve to incorporate both the valve and actuation function. With pneumatic or electro-pneumatic control, it avoids many of the restrictions associated with traditional actuators.
FeaturesOptimisation & Safety
- Very compact: up to 50% smaller than valves with separate actuators
- Simple to install: ready-to-use
- Common sub-base for solenoid control
- Automation of the open/close function
- Operation independent of the upstream and downstream pressure in the circuit
Comprehensive Offer
- Two seal materials for a wider chemical and temperature range
- Pneumatic, electro-pneumatic or dual actuation control
- Three versions: normally closed, normally open and double-acting
Performance
- Full flow: low pressure drop
- Excellent pressure/temperature performance
- Compatible with many industrial fluids
Specifications
Brand
Applications
- Packaging
- Robotics
- Textile
- Pneumatics
- Rubber Industry
- Plastic Injection Moulding
- Printing
- Flow Control
Maximum Pressure
- 10 bar
Maximum Working Temperature
- 120° to 135° C
Media
- Depending on Typical of Seal: FKM: Water, Air, Oils, Greases, etc. or EPDM: Hot Water, Air, Steam, etc.
Minimum Working Temperature
- 0° C
O-Ring Material
- EPDM
- FKM
Quantity Per Box
- 1
Specifications Met
- RoHS
- REACH
Vacuum Pressure Rating
- 740 mm-Hg
Weight
- 0.815 to 6.275 kg
- Piloted Allow/Stop Fluid Circulation in Industrial Circuits
- Suitable for Flow Control Applications
- Suitable for Plastic Injection Molds
