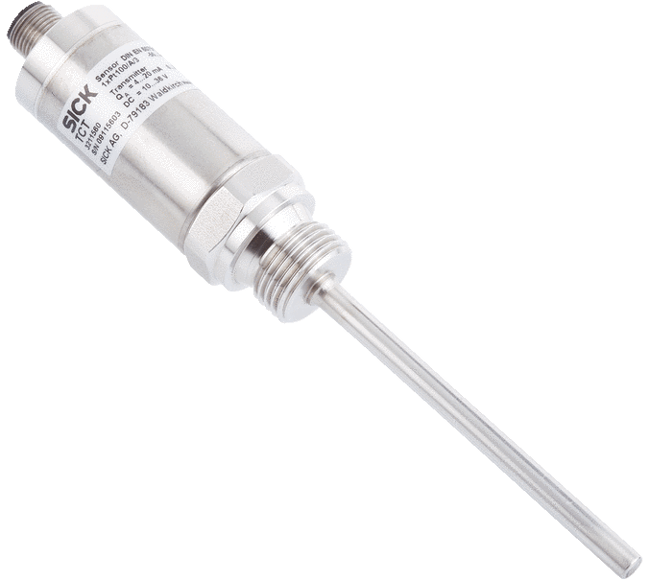

TCT Temperature Sensor

Brand: Sick AG

The TCT is a universal Pt100 resistance thermometer in a compact stainless steel housing for temperature measurement in liquids and gases.

Available with a variety of process connections and insertion lengths, it can be adapted to specific applications.

The TCT is available with or without compression fittings and with various connection threads, for example. Designs with protective pipe can also be supplied.

The Pt100 element is located inside the tip of the probe. Wetted parts are made from high-grade stainless steel 1.4571.

The TCT is available with Pt100 output or an integrated measuring transducer with 4 mA ... 20 mA output signal.
Features
  • Reliable operation through rugged design and high-quality materials
  • Very good long-term stability, accuracy and linearity
  • Quick and safe installation
  • Convenient system integration through compact dimensions and industry-standard output signals
  • Optimal solutions for individual requirements due to versatile configurability

1 - 12 of 1,856 Part Numbers
TCT-1AAG10253LG
TCT-1AAG10253LG
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 25 mm / 3 mm
  • Electrical Connection/Enclosure Rating - Angled Plug Connector, DIN EN 175301-803 A, IP 65
  • Special Features of the Version - Oil- and Grease-free
TCT-1AAG10253LZ
TCT-1AAG10253LZ
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 25 mm / 3 mm
  • Electrical Connection/Enclosure Rating - Angled Plug Connector, DIN EN 175301-803 A, IP 65
  • Special Features of the Version - Without Special Features of the Version
TCT-1AAG10253MG
TCT-1AAG10253MG
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 25 mm / 3 mm
  • Electrical Connection/Enclosure Rating - M12 x 1, 4-Pin, IP 67
  • Special Features of the Version - Oil- and Grease-free
TCT-1AAG10253MZ
TCT-1AAG10253MZ
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 25 mm / 3 mm
  • Electrical Connection/Enclosure Rating - M12 x 1, 4-Pin, IP 67
  • Special Features of the Version - Without Special Features of the Version
TCT-1AAG10503LG
TCT-1AAG10503LG
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 50 mm / 3 mm
  • Electrical Connection/Enclosure Rating - Angled Plug Connector, DIN EN 175301-803 A, IP 65
  • Special Features of the Version - Oil- and Grease-free
TCT-1AAG10503LZ
TCT-1AAG10503LZ
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 50 mm / 3 mm
  • Electrical Connection/Enclosure Rating - Angled Plug Connector, DIN EN 175301-803 A, IP 65
  • Special Features of the Version - Without Special Features of the Version
TCT-1AAG10503MG
TCT-1AAG10503MG
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 50 mm / 3 mm
  • Electrical Connection/Enclosure Rating - M12 x 1, 4-Pin, IP 67
  • Special Features of the Version - Oil- and Grease-free
TCT-1AAG10503MZ
TCT-1AAG10503MZ
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 50 mm / 3 mm
  • Electrical Connection/Enclosure Rating - M12 x 1, 4-Pin, IP 67
  • Special Features of the Version - Without Special Features of the Version
TCT-1AAG11006LG
TCT-1AAG11006LG
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 100 mm / 6 mm
  • Electrical Connection/Enclosure Rating - Angled Plug Connector, DIN EN 175301-803 A, IP 65
  • Special Features of the Version - Oil- and Grease-free
TCT-1AAG11006LZ
TCT-1AAG11006LZ
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 100 mm / 6 mm
  • Electrical Connection/Enclosure Rating - Angled Plug Connector, DIN EN 175301-803 A, IP 65
  • Special Features of the Version - Without Special Features of the Version
TCT-1AAG11006MG
TCT-1AAG11006MG
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 100 mm / 6 mm
  • Electrical Connection/Enclosure Rating - M12 x 1, 4-Pin, IP 67
  • Special Features of the Version - Oil- and Grease-free
TCT-1AAG11006MZ
TCT-1AAG11006MZ
  • Output Signal - Measuring Transducer 4-20 mA, 2-Wire
  • Measuring Range - -50° to 150° C
  • Process Connection - Thread G 1/4 B
  • Installation Length / Diameter - 100 mm / 6 mm
  • Electrical Connection/Enclosure Rating - M12 x 1, 4-Pin, IP 67
  • Special Features of the Version - Without Special Features of the Version
1 - 12 of 1,856 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE

Enclosure Rating

  • IP67
  • IP65

Measuring Range

  • -50° to 250° C

Accuracy

  • Opt. Measuring Transducer ≤ ± 1,0 % of Span
  • Sensor Element: Class A According to IEC 60751

Output Signal

  • 4-20 mA, 2-Wire (RA ≤ (L+ - 9 V) / 0.023 A [Ohm])
  • Pt100, 4-Wire

Electric Connection

  • L-Connector (DIN EN 175301-803 A), 4-Pin, IP65
  • Round Connector M12 x 1, 4-Pin, IP67

Process Connection

  • Thermowell Weld-in Diameter 18 mm
  • Thermowell G 1/4” B
  • Thermowell G 1/2” B
  • Thermowell 1/4” NPT
  • Thermowell 1/2” NPT
  • Thread 1/4” NPT
  • Thread 1/2” NPT
  • Thread G 1/4” B
  • Thread G 1/2” B
  • Compression Fitting 1/4” NPT, CrNi Stainless Steel Ferrule
  • Compression Fitting 1/2” NPT, CrNi Stainless Steel Ferrule
  • Compression Fitting 1/4” NPT, PTFE Ferrule
  • Compression Fitting 1/2” NPT, PTFE Ferrule
  • Compression Fitting G 1/2” B, CrNi Stainless Steel Ferrule
  • Compression Fitting G 1/4” B, PTFE Ferrule
  • Compression Fitting G 1/2” B, PTFE Ferrule
  • Compression Fitting G 1/4” B, CrNi Stainless Steel Ferrule

Insertion Length

  • 25 to 350 mm

Probe Diameter

  • 3 mm, 6 mm
