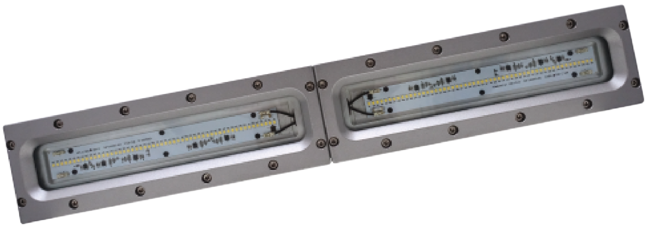

L1319 High Humidity & Heat Resistant LED Lighting
Brand: Top Hi-Tech Inc
- UL 1598 Luminaires
- CSA C22.2 No.250.0
- IP67 / NEMA 6
- AC LED Driver-less Technology
- Intended for Use in High Ambient Temperature Environments
- Up to 100° C Heat Resistant
- Die-cast aluminum fixture for LED heat dissipation and thermal control
- Suitable for tunnel installation
Specifications
Brand
Certifications & Approvals
- UL
- CSA
Environmental Protection
- NEMA 6
- IP67
Ambient Temperature
- 100° C Heat Resistant Application: 86° to 100° C (186.8° to 212° F)
- 85° C Heat Resistant Application: 66° to 85° C (150.8° to 185° F)
Rated Voltage (±10%)
- 100° C Heat Resistant Application: 40 W - 120 V / 220 V / 277 V
- 85° C Heat Resistant Application: 40 W - 120 V / 220 V / 277 V, 60 W - 220 V
Watts (±10%)
- 40 W / 60 W (Only 220 V)
Amps
- 40 W - 120 V: 0.33 A, 220 V: 0.18 A, 277 V: 0.14 A
- 60 W - 220 V: 0.27 A
Power Factor
- cos ≥ 0.9
Color of LED Light
- 5000K (Cool White)
- 3000K (Warm White)
CRI
- Warm White ≥ 80
- Cool White ≥ 70
Lumen (± 10%)
- 60 W - 3000K: 5,400 lm, 5000K: 6,000 lm
Beam Angle
- X-113°
- Y-116°
Frequency
- 50/60 Hz
Enclosure / Body Material
- Enclosure: Aluminum Alloy
Material of Construction
- Screws: Stainless Steel
- Tempered Glass: IEC Standards Impact resistant > 4 Joule
LED Service Life
- 60,000 hours
Entrance Thread
- 3 x M25
Mounting
- Wall Mount
- Stanchion
- Hanging Mount
- Pendant Mount
Net Weight
- 7.4 kg (16.3 lb)
- Pulp & Paper Industry
- Power Plants
- Smelter
- Casthouse
- Automotive Industry
- Textile Industry
- Cable Manufacturing
- Glass Factory
