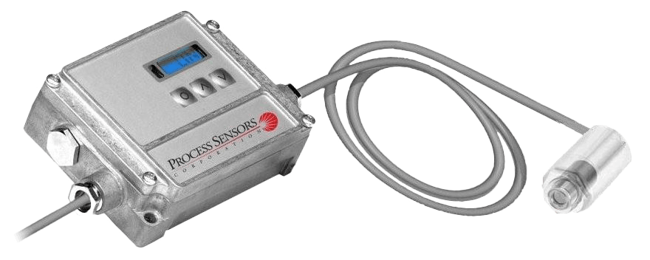

PSC-SSS-Hot Infrared Temperature Sensor

Brand: Process Sensors Corporation

Precise non-contact temperature measurement from -40° to 975° C (-40° to 1,787° F) under rough environmental condition.
Features
  • New innovative infrared thermometer for hot ambient temperatures up to 250° C (482° F) without the need for cooling
  • Electronics box for programming and temperature display
  • Choice of Optics: 10:1 or 2:1

Specifications

Accuracy

  • ± 1 %
  • ± 1.5° C (± 2.7° F)

Ambient Temperature Range

  • Electronics: 0° to 85° C (32° to 185° F)
  • Sensing Head: -20° to 250° C (-4° to 482° F)

Applications

  • Dryers
  • Heat Treatment Lines
  • Metal & Glass Industry
  • Ovens
  • Paper
  • Plastics
  • Semiconductors
  • Textile Manufacturing

Cable Length

  • 10 to 50 feet (3 to 15 metres)

Communication

  • CAN
  • PROFIBUS DP
  • RS-232
  • RS-485
  • USB

Current

  • Current Draw: Max.

Environmental Protection

  • IP65
  • IP66
  • NEMA 4

Humidity

  • 10 to 95 % Relative Humidity, Non-Condensing

Load Impedance

  • mV Min.: 100 kiloohms

Output

  • Alarm: 24 V / 50 mA (Open Collector)
  • Alarm: 50 mA (Open Collector)
  • Analog Channel 1: 0-10 V
  • Analog Channel 1: 0-20 mA
  • Analog Channel 1: 0-5 V
  • Analog Channel 1: 4-20 mA
  • Analog: J Thermocouple
  • Anlog: K Thermocouple

Output Impedence

  • mA - Max.
  • Thermocouple: 20 ohms

Power Supply

  • 8-36 Vdc

Range

  • Spectral: 8 to 14 µm

Repeatability

  • ± 0.5 %
  • ± 0.5° C (± 0.9° F)

Resolution

  • Optical Resolution 10:1
  • Optical Resolution 2:1
  • Temperature Resolution (NETD): 0.25° C

Response Time

  • 100 milliseconds

Shock

  • IEC 68-2-27: 50 G, 11 milliseconds, any Axis

Storage Temperature

  • Electronics: -40° to 85° C (-40° to 185° F)
  • Sensing Head: -40° to 250° C (-40° to 482° F)

Temperature Range

  • -40° to 975° C (-40° to 1,787° F)

Vibration

  • IEC 68-2-6: 3 G at 11 to 200 Hz, any Axis
