Series EB526/EB529/EB525

Brand: KTM

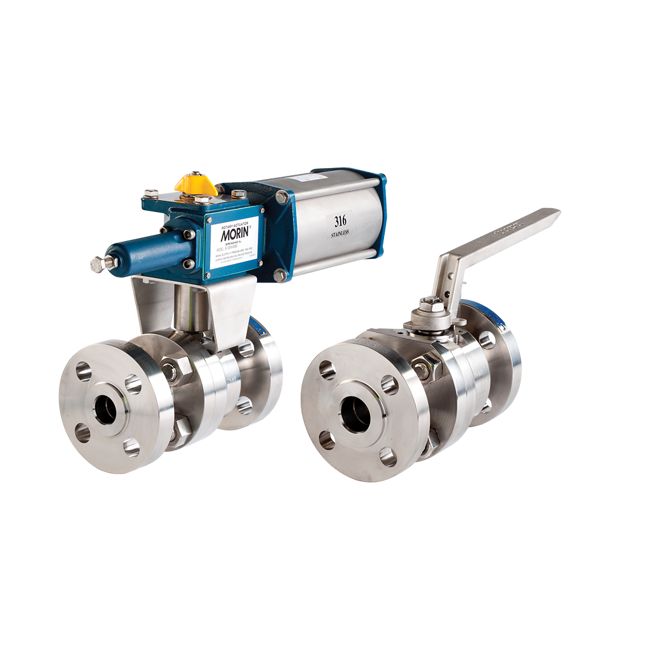

KTM full bore Class 600, 900 & 1500 fire-safe and anti-static, high pressure ball valve for the chemical and petroleum industries.
Features
  • Designed to ASME B16.34.
  • Two piece bolted body design complies with ASME B16.34 & ASME VIII.
  • ISO 5211 top mounting flange.
  • Face to Face to API 6D / ASME B16.10.
  • Fire safe tested and certified to API 607 6th Ed. by Lloyd’s Register Asia.
  • Flange connection to ASME B16.5 as standard.
  • Carbon steel or stainless steel body as standard.
  • Precision 316 stainless steel ball and UNS S31803 stem as standard.
  • Blow-out proof shouldered stem.
  • Anti-static tested.
  • A secondary metal ‘fire-safe’ seat.
  • Cantilevered block seat as standard.

Specifications

Brand

Approvals & Certifications

  • CE, Fire Safe, PED, Regional, NACE

Body Design

  • Long Pattern, Side Entry

End Connection

  • Butt Weld, Flanged, Hub, Socket Weld

Material

  • 316 Stainless Steel, 316L Stainless Steel, Alloy, Carbon Steel, Inconel, Duplex, Super Duplex

Media

  • Liquid, Aggressive Liquids & Gases, Fuel Oil, Light Oil, Liquid Propane Gas, LPG, Natural Gas, Specialty Gases

Process Connection Type

  • 1500 RF, 1500 RTJ, 600 RF, 600 RTJ, 900 RF, 900 RTJ, Flanged, SWE, Weld End

Seat / Seal Type

  • Ball, Soft Seal

Shutoff Class

  • Zero Leakage, API 598

Standards

  • ASME B16.34, API 608

Stem

  • Adjustable Packing, Live Loaded

Valve Size

  • NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 3/4 / DN 20, NPS 1 / DN 25

Valve Size Standard

  • DN, NPS

Valve Type

  • Ball, Floating Ball Valve

  • Fuel Gas
  • Cogeneration
  • City Gates & District Stations
  • Chemical Dispersion
  • Burner Management Systems
  • Fuel Management Systems
  • Gas Gathering & Compression
  • Product Transfer
  • Refining
  • Separation
  • Storage
