SIGNEXT On-Off Auto Switch Module
Brand: Emphatec
There are many process control applications where local control or disabling of a relay might be required. Often panel mounted rotary switches are used to achieve this and there are some DIN rail mounted relay modules available with an On-Off-Auto switch built-in.
These modules tend to use relays soldered to the PCB as opposed to socket mounted. Emphatec now offers 2 DIN rail mounted modules that can be used in this application.

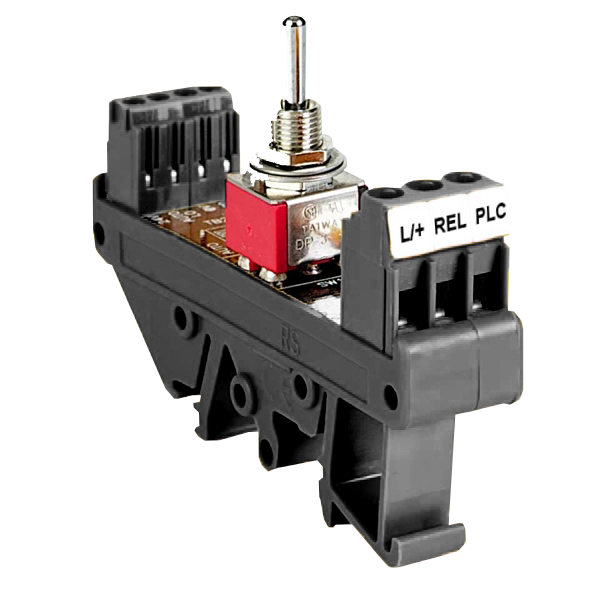

The first is a switch module that can be used with any relay with a coil rated up to 120 V, 5 A or 30 Vdc, 2 A. A unique feature of this module is that it provides two 24 Vdc digital outputs - one that is active high when the switch is in the “Auto” position and the other that is active high when the switch is in either the “On” or “Off” positions.
Features
Specifications
Brand
Approvals & Certifications
- UL (C,US) E334979
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- Coil Rating: Approximately 10 Vdc Holding
- Coil: 2.2 Vdc Drop-Out
- Coil: 7 A at 24 Vdc, 30 Vdc, Max.
- Contact Rating: 230 Vac, 5 A
- Contact Rating: 30 Vdc / 230 Vac at 6 A, Max.
- Status Output: 24 Vdc Nominal
- Status Output: 30 Vdc, Max.
- Status Output: 40 mA - Max.
- Switch Rating: 2 A at 30 Vdc
- Switch Rating: 5 A at 230 Vac
Operating Time
- Switching: Approximately 5 milliseconds
Release Time
- Switching: 3 milliseconds
Switch Type
- SPDT
Termination
- 28 to 14 AWG
- Switch Terminations: 26 to 12 AWG
