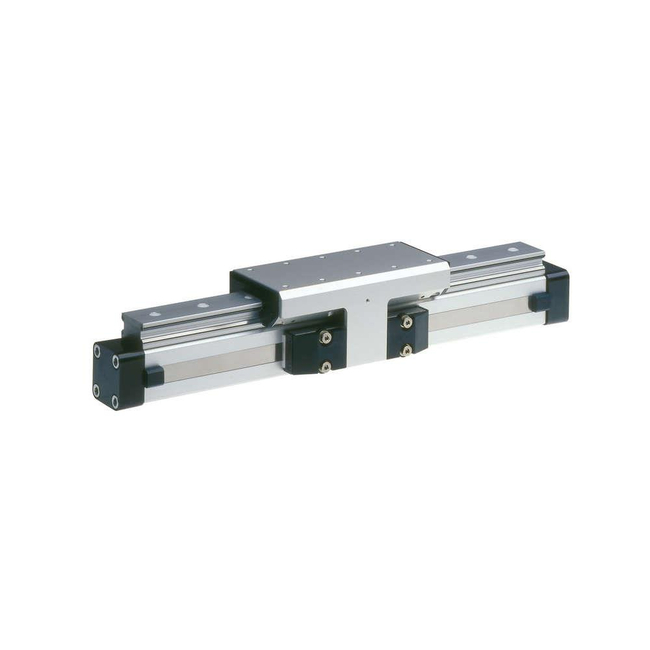

OSPE32-SB Screw Driven, PROLINE Roller Guide, Rodless Electric Linear Actuator

OSPE32-SB Screw Driven, PROLINE Roller Guide, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

With multiple guide, carriage and mounting options, and an IP54 rating, the OSPE-SB 32 ball screw driven actuator is designed for medium precision, high duty cycle application. Suitable for payloads up to 1348N.

Designed to offer medium to high precision point to point positioning at a 100% duty cycle the PROLINE roller guide OSPE32-SB ball screw driven actuator is a versatile solution for transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Ball screw driven actuator for dynamic and precise positioning with medium travel
  • High acceleration and efficiency for demanding processes
  • Precise aluminum roller guide for high loads and speed
  • Smooth operation offering low noise operation
  • Integrated seal strip offering IP54 protection
  • Pre-configured motor and gearhead mounting kits for simplified installation
  • Contactless sensing for positional feedback

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • PROLINE Roller Guide

Corrosion Resistant Option

  • No

Drive Type

  • Ballscrew

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 154.6

Maximum Acceleration (m/S2)

  • 4

Maximum Payload FZ (N)

  • 1348

Maximum Speed (inch/sec)

  • 19.7

Maximum Speed (m/sec)

  • 0.5

Maximum Stroke (inch)

  • 78

Maximum Stroke (mm)

  • 2000

Maximum Thrust FX (Lbs)

  • 247

Maximum Thrust FX (N)

  • 1100

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 52

Series

  • OSP-E

Typical Payload FZ (N)

  • 150 - 1348

  • Pick and Place Applications
  • Packaging, Labeling and Wrapping Systems
  • Pusher, Picker and Gripper Applications
  • Positioning
  • Feeding
  • Cutting
  • Markets
    • Factory Automation
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities
    • Coatings / Ink / Paint
    • Food & Beverage
    • Bus and Coach
