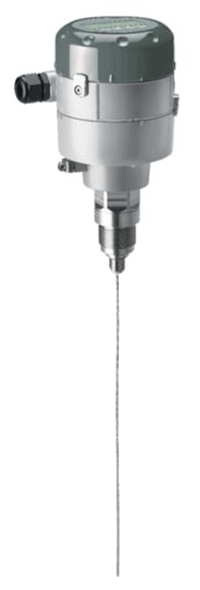

TGF1100 Micro Pulse Level Meter

Brand: Tokyo Keiso Co, Ltd

The TGF1100 series is a unique 2-wire continuous level-measuring instrument using TDR technology.

The simple and compact design suitable for tank-top installation with no moving parts has a high cost performance with the maintenance-free and low cost installation by the simple 2-wire loop-powered system.

This continuous level meter become applicable to wide services including various liquid and powders using by coaxial and single cable probes.

The keypad operation on the front display allows easy parameter setting including zero point adjustment and measuring range.

The micro pulse level meter is suitable for tank and silo inventory for liquids and powders as well as level controls of the intermediate tanks and vessels.
Features
  • Wide applications by TDR technology
  • 2-wire loop-powered system with less cable and low installation cost
  • A current output is selectable from level, distance, volume or mass
  • From - 50° to 100° C and from full vacuum to 1.6 MPa
  • No influence from changes in temperature, pressure or density
  • The probe can be cut in short on site to the application
  • Start to measure with a minimum setting after installation
  • Measuring Max. 20 min liquids and 10 min powders
  • Easy mounting on top of tanks
  • No moving parts and less maintenance
  • Display language in English, Japanese or others and easy operation

Specifications

BSP Connection

  • G 1” Male
  • G 3/4” Male

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP66
  • IP67

Materials of Construction

  • Probe: 316 Stainless Steel
  • Probe: 316L Stainless Steel

NPT Connection

  • 1” NPT Male
  • 3/4” NPT Male

Process Connection Material

  • 316L Stainless Steel

Seat / Seal Material

  • Seal: EPDM
