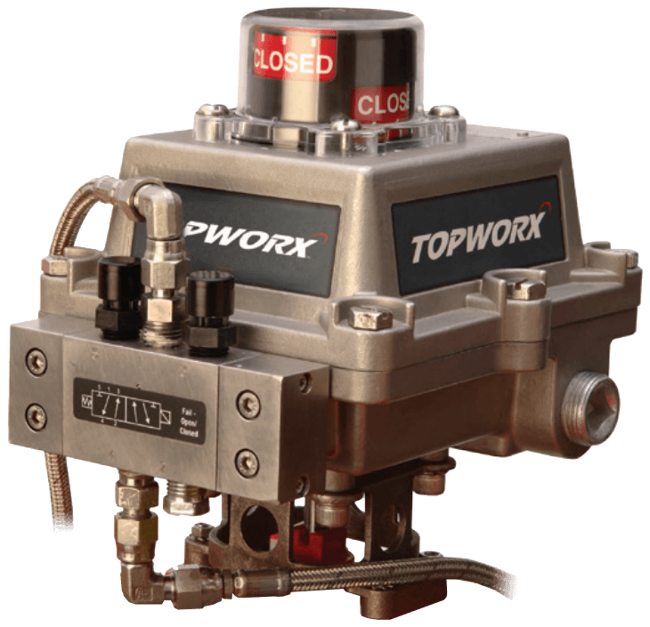

Topworx SIL-3 Rated Valve Controller, D-ESD

D-ESD SIL-3 Rated Valve Controller

Brand: TopWorx
Add Product to My Catalog

Topworx SIL-3 Rated Valve Controller, D-ESD
Automated "Partial Stroke Testing" of emergency shutdown valves.
Features
  • Suitable for use in SIL-3 applications
  • Certified for use in all hazardous areas
  • Integrated solution with all controls in a single housing
  • Onboard diagnostics for performance validation

View_Details

Specifications

Brand

Applications

  • Hydraulic Actuator
  • Valve

Approvals & Certifications

  • ATEX
  • CE
  • GOST
  • IEC
  • INMETRO
  • KOSHA
  • NEPSI
  • UL

Approvals & Certifications

  • IEC 61508
  • SIL 3

Communication

  • AS-Interface
  • DeviceNet
  • FOUNDATION Fieldbus
  • HART
  • PROFIBUS

Conduit Connection

  • 1/2” NPT
  • 3/4” NPT
  • M20

Consumption

  • Low Power Consumption: 0.5 W

Enclosure, Body Material

  • 316 Stainless Steel
  • Tropicalized Aluminum

Environmental Protection

  • Explosion-proof
  • Flameproof
  • IP66
  • IP67
  • Non-Incendive

Flow Rate

  • 1.20 Cv
  • 3 Cv

Materials of Construction

  • Spool: 304 Stainless Steel
  • Spool: 316 Stainless Steel
  • Spool: Aluminum Hard Coat Anodized

NPT Connection

  • 1/2” NPT
  • 1/4” NPT

O-Ring Material

  • Buna-N
  • Silicone

Shaft Material

  • 1/4” DD 304 Stainless Steel

Switch Type

  • Reed Switch

Documentation

Data Sheets
