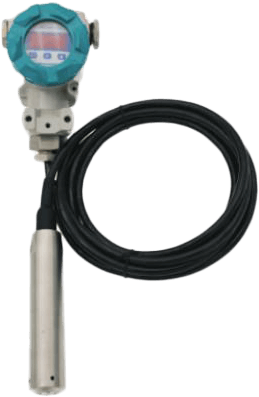

ULB6-b Water Tank Level Sensor is made from stainless steel with rigid and sturdy construction. The protection cap with a small hole not only protect the diaphragm, but also make the liquids contact the diaphragm freely.

The delicate sealing technology and good assembly techniques guarantee ULB6-b Water Tank Level Sensor's outstanding quality & performance.

The Water Tank Level Sensor has a waterproof cable with vent hose which is designed for submersible applications. ULB6-b model is designed with LCD display to display the pressure or height of the measured media.
Features
  • Reversed polarity protection and current limiting protection
  • Rigid and robust construction, IP68 protection
  • Wide application scope, long service life
  • PUR, NBR, PE or PTFE cable for options

Specifications

Measuring Ranges

  • 0 ~ 1 mH₂O...200 mH₂O

Overload Pressure

  • 200 % Full Scale

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.1 % FS, 0.25 % FS, 0.5 % FS

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Storage Temperature Range

  • -40° to 100° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Electrical Connection

  • Ø 7.2 mm Shielded Cable with Vent Hose

  • ULB6-b Water Tank Level Sensor is Designed with IP68 Protection, it is Widely Applied in Petroleum, Chemical Industry, Hydrology Exploration etc.
