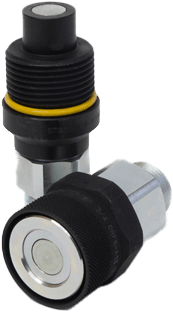

VEP Series
Brand: Stucchi, IncThe VEP Series is a popular solution for hydraulic circuit applications subject to high pressure impulses and circuits which experience high residual or trapped pressure in a line.
Thread-to-connect design eliminates premature wear or brinelling, a patented internal valve allows connection/disconnection with high residual pressures, and the flat face design avoids loss of hydraulic fluid and contamination into the circuit.
A yellow o-ring indicator makes the VEP series even easier to work with.
Features- Size range: 1/4” thru 2”
- Port options: NPT, SAE, BSP, ORFS
- Interchanges with VEPHD, VEPHDL Series
- Connect/disconnect up to 25 MPa/3625 psi residual pressure
- Working pressure: 35-60 MPa/5075-8700 psi range
- Eliminates brinelling, reduces leakage
- Saves time changing tools
Specifications
Brand
Body Size
- 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
Port Options
- BSP, NPT, ORFS, SAE
Port Size
- 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
Valve Style
- Flat Face
Working Pressure
- 5000-9000
Material
- Carbon
- All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure
- All large equipment needing junction points in circuit: cranes, drilling machines, oil field, well head drives, porta-power
- Excavators w/ auxiliary line for attachments: thumbs, grapples, hammers, compactors/hopaks
